Игольчатые вентили серии NV2
- Рабочее давление до 689 бар
- Цельная конструкция корпуса
- Рабочая температура от -53 до 648 °С
- Низкотемпературное исполнение (от -60°)
- Прямая и угловая конфигурация
- Уплотнение до резьбы штока защищает его от воздействия среды
- Дополнительная защита уплотнение в полностью открытом состоянии
- Опциональные цветные рукоятки
689 бар
от -60 до 648

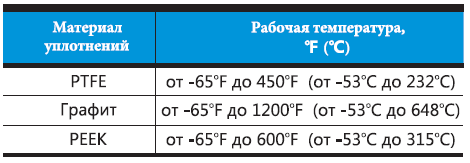

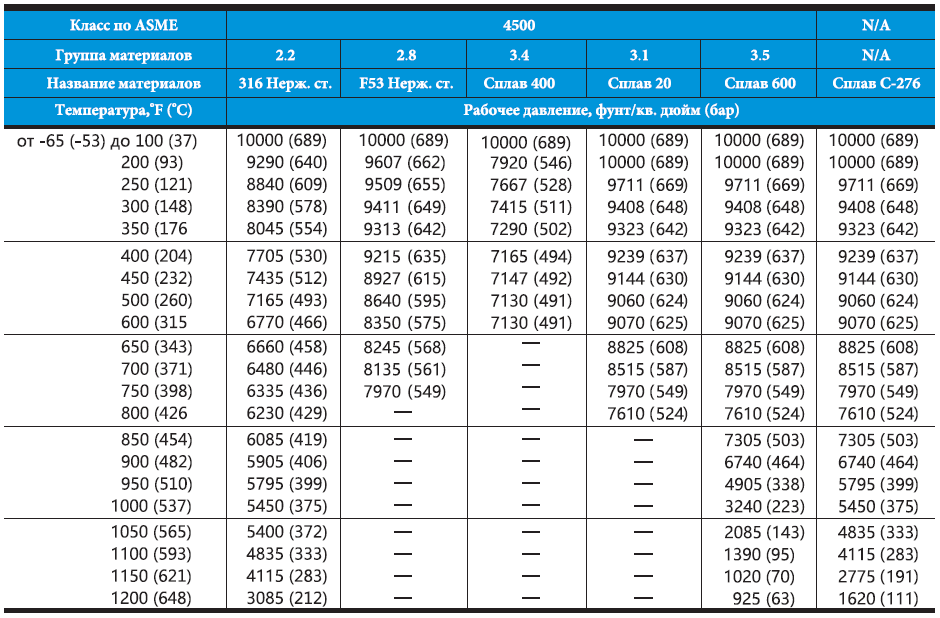

Номинальные параметры давления и температуры

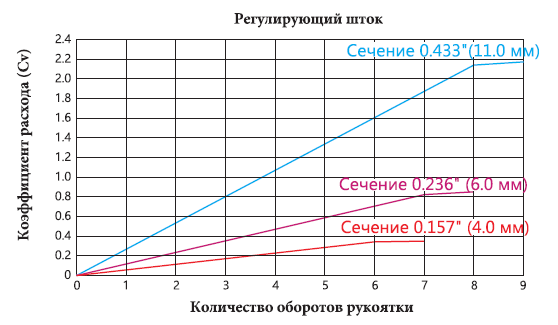

Расход при 37oC (100oF)

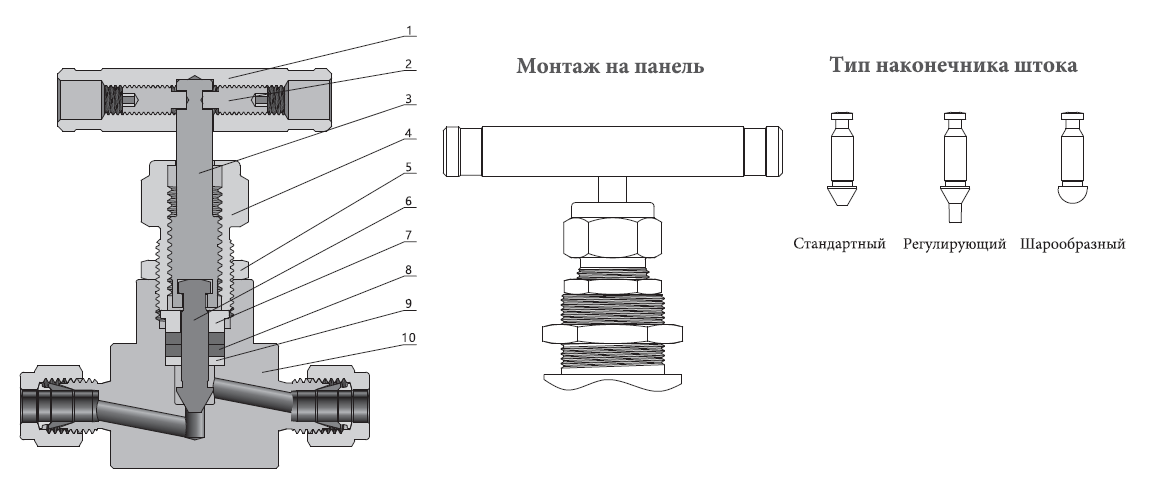

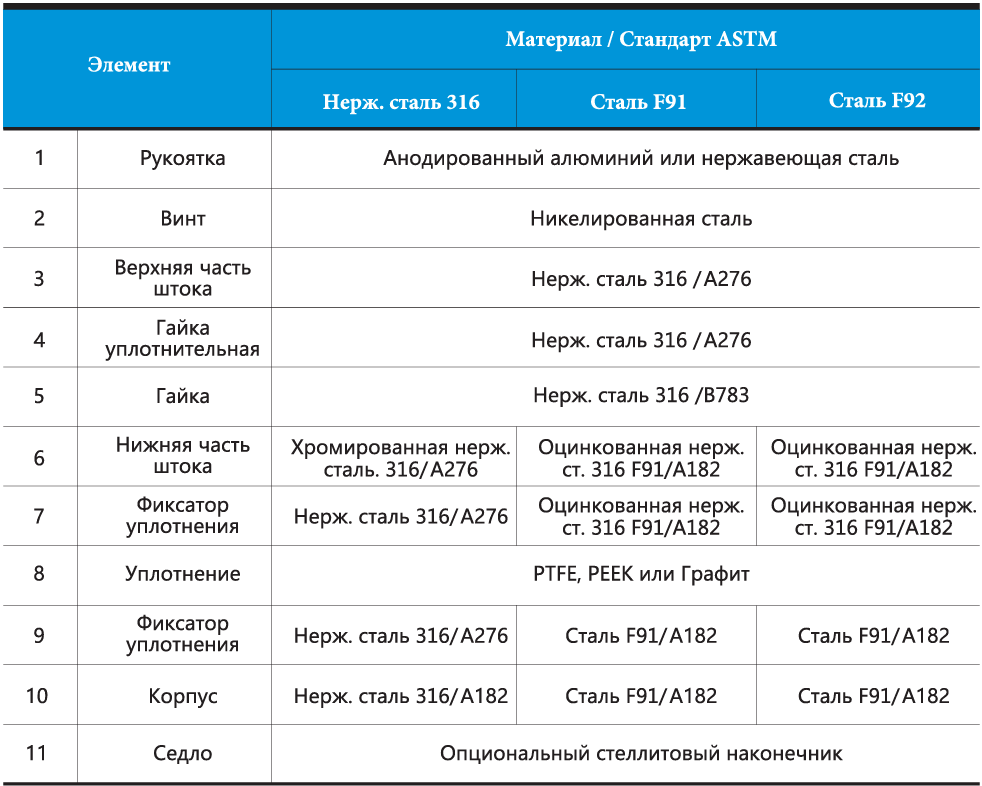

Стандартные используемые материалы

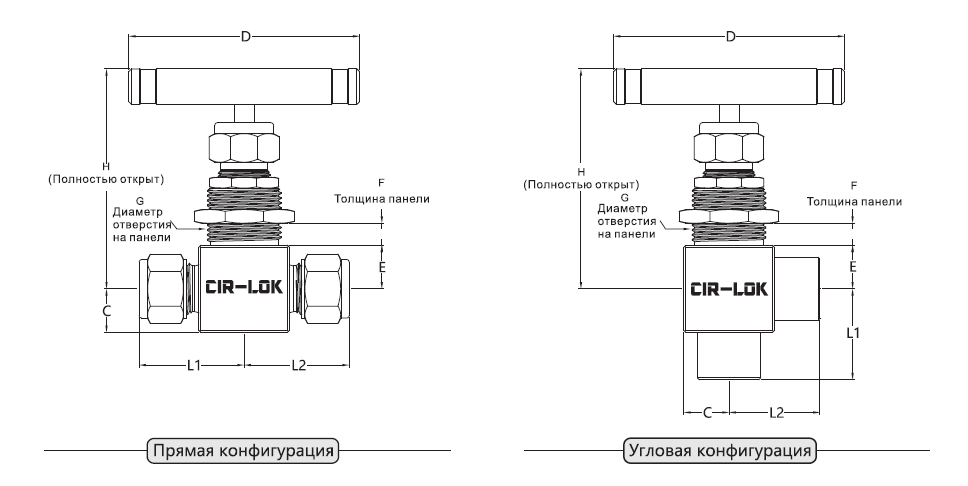

Размеры

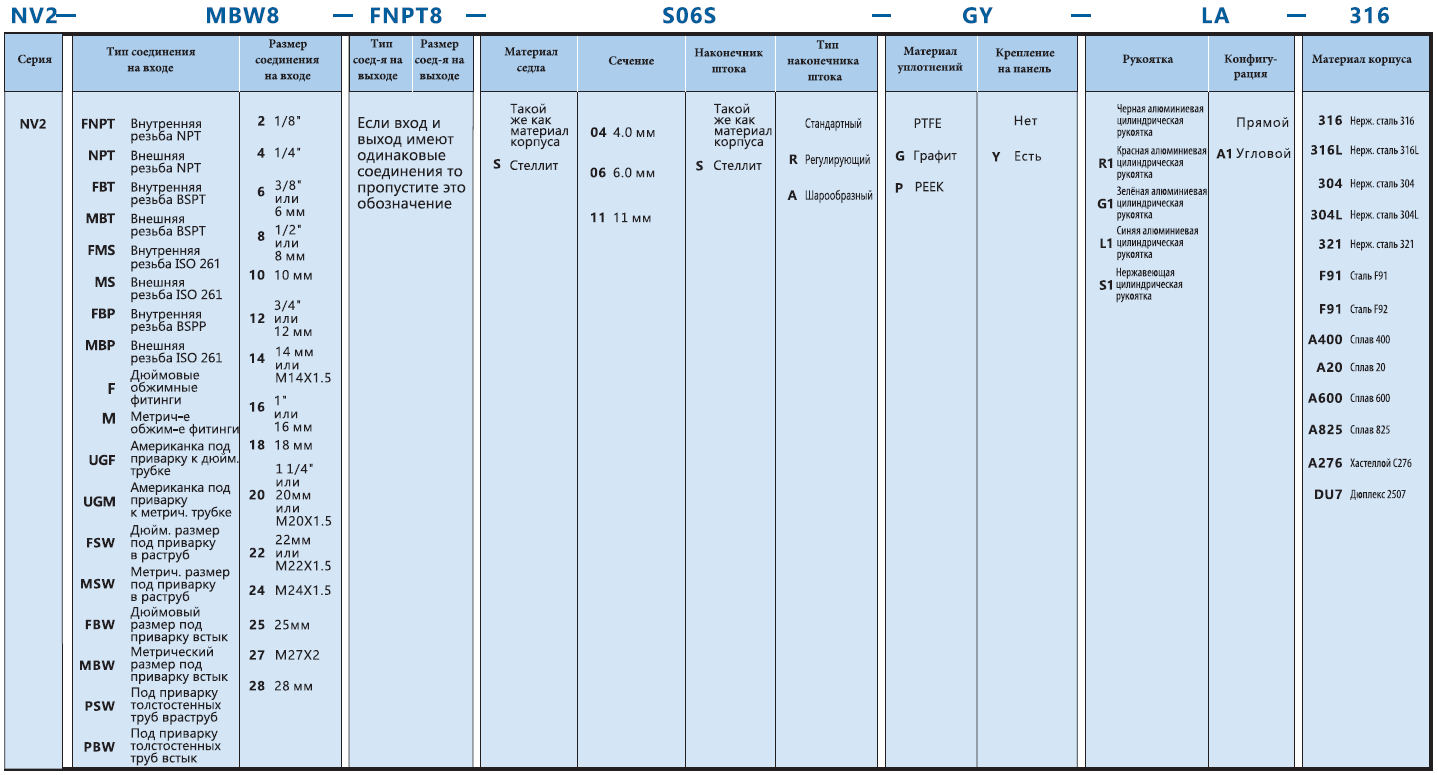

Как заказать
Сортировать:
[{"ID":492,"NAME":"NV2-F12-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-f12-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.17(106)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":491,"NAME":"NV2-FNPT12-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-fnpt12-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.17(106)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":490,"NAME":"NV2-FNPT8-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-fnpt8-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.17(106)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":484,"NAME":"NV2-M12-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-m12-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["12"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.5(88.9)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":483,"NAME":"NV2-M10-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-m10-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["10"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.5(88.9)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M10","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":482,"NAME":"NV2-F8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-f8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.5(88.9)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":480,"NAME":"NV2-FNPT8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-fnpt8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.5(88.9)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":478,"NAME":"NV2-FNPT4-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-fnpt4-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.5(88.9)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":476,"NAME":"NV2-M8-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-m8-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"2.85(72.5)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":475,"NAME":"NV2-M6-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-m6-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["6"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"2.85(72.5)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":474,"NAME":"NV2-F4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-f4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"2.85(72.5)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":473,"NAME":"NV2-NPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-npt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"2.85(72.5)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":472,"NAME":"NV2-FNPT4-NPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-fnpt4-npt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"2.85(72.5)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"},{"ID":471,"NAME":"NV2-FNPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv2\/nv2-fnpt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"2.85(72.5)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/469\/158_158_0\/4693048b823c5dac648603de08815d77.png"}]
Игольчатые вентили серии NV2 от компании CIR-LOK
Вентиль игольчатый NV2 применяется для точного контроля и надежного перекрытия. Конструкция выполнена из цельного корпуса. Это повышает прочность и исключает утечки.
Он выдерживает экстремальные нагрузки. Рабочее давление достигает 689 бар. Устройство сохраняет герметичность при любых условиях.
Температурный диапазон от -53 до +648 °С. Есть низкотемпературное исполнение до -60°. Это расширяет использование в холодных регионах.
Конфигурации выпускаются прямые и угловые. Такой формат упрощает монтаж и делает установку универсальной. У нас есть детали под любую задачу.
Корпус защищен уплотнением до резьбы штока. Оно препятствует воздействию агрессивной среды. В открытом положении предусмотрена дополнительная защита.
Компания CIR-LOK выпускает продукцию под строгим контролем. Каждый клапан проходит тестирование и рассчитан на долгий срок службы.
Для удобства есть цветные рукоятки. Они помогают визуально различать компоненты. Такой подход облегчает обслуживание.
Применение игольчатых вентилей серии NV2
Игольчатый вентиль серии NV2 используется для систем точного регулирования. Он подходит для плавного изменения или полного перекрытия потока. Устройство обеспечивает стабильное регулирование в разных условиях.
Применение охватывает разные отрасли. Комплектующие востребованы в химической и нефтегазовой сфере. Они подходят для энергетики и машиностроения. Используются в лабораторных установках.
Запорный элемент выдерживает контакт с агрессивной среда. Материалы устойчивы к давлению и температуре.
Фитинги CIR-LOK применяются на объектах в России и за ее пределами. Качественная конструкция снижает риск отказов. Это важно для критических процессов.
Устройство может работать в магистральных и локальных системах. Оно надежно в любых условиях эксплуатации. Даже при резких перепадах температуры.
NV конструкция адаптирована под промышленные стандарты. Размеры есть разные - по запросу. Поддерживаются соединения в дюймах и мм.
Благодаря надежности деталь применяется в трубопроводах высокого давления, используется как основной компонент в системах безопасности.
Купить игольчатый вентиль серии NV2 оптом и в розницу
Компания CIR-LOK предлагает вентиль игольчатый NV2 для разных проектов. У нас есть прямые и угловые варианты. Есть модели для стандартных и низких температур.
Покупать удобно оптом и в розницу. Предлагаются выгодные условия для корпоративных заказчиков. Доступна единичная поставка для частных клиентов.
На сайте есть подробное описание. Указана актуальная цена, характеристики и фото. Работает официальный магазин для онлайн-заказов.
Доступна доставка по всей России. В Москве возможен самовывоз и экспресс-доставка. Все товары проходят проверку перед отправкой.
Компания обеспечивает полный сервис. Консультации доступны по телефону и через интернет.
Каждый запорный клапан соответствует международным стандартам. Изделия сертифицированы и одобрены для промышленного применения.
Большой складской запас позволяет организовать быстрый отгрузку. В наличии все типы вентилей. Поставка выполняется точно в срок.
Комплектующие от Цир-Лок — это надежные компоненты для любой системы. Они сочетают прочность, долговечность и удобство эксплуатации.
