Игольчатые вентили серии NV3
- Рабочее давление до 413 бар
- Рабочая температура от -53 до +648 °С
- Низкотемпературное исполнение (от -60°)
- Безопасная конструкция корпуса
- Прямая и угловая конфигурации
- Уплотнение штока до резьбы защищает её от воздействия среды
- Крепление на панель
- Опциональные цветные рукоятки
413 бар
от -60 до 648

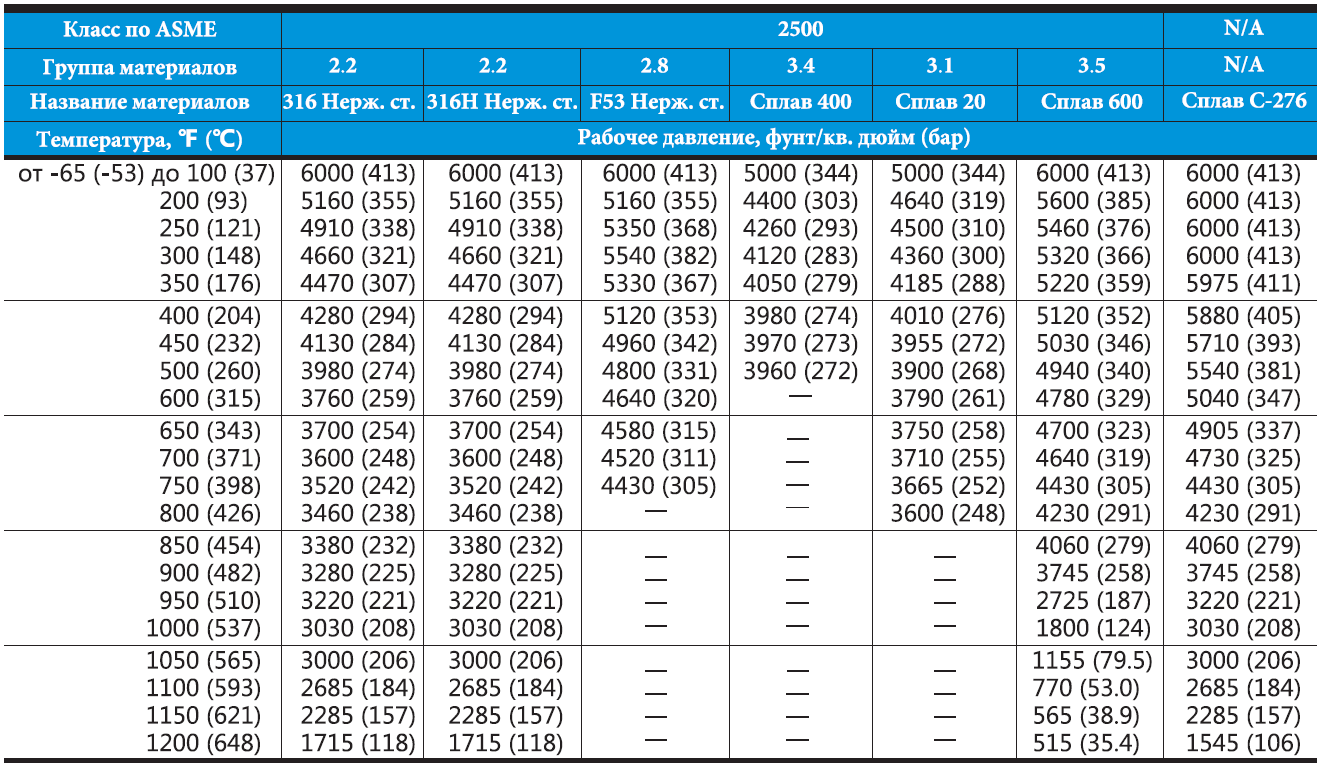

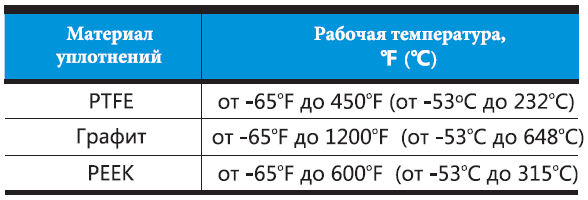

Номинальные параметры давления и температуры

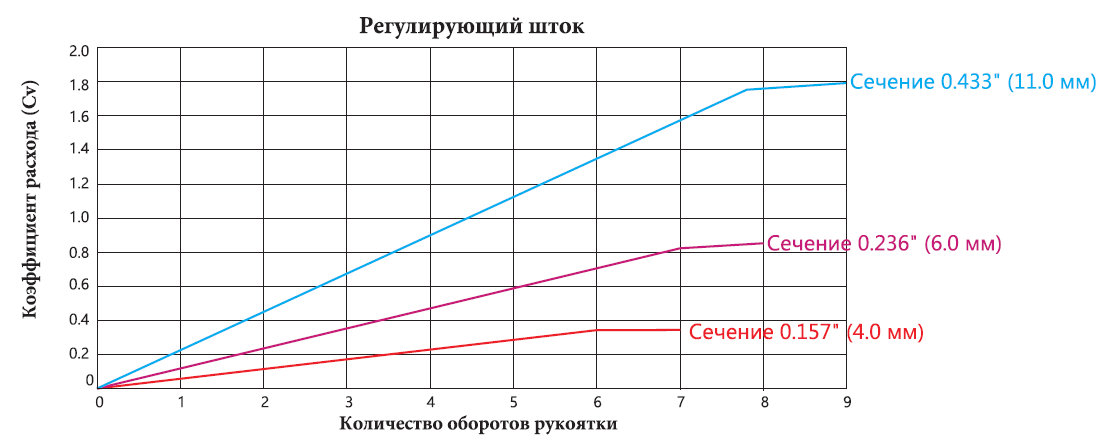

Расход при 37oC (100oF)

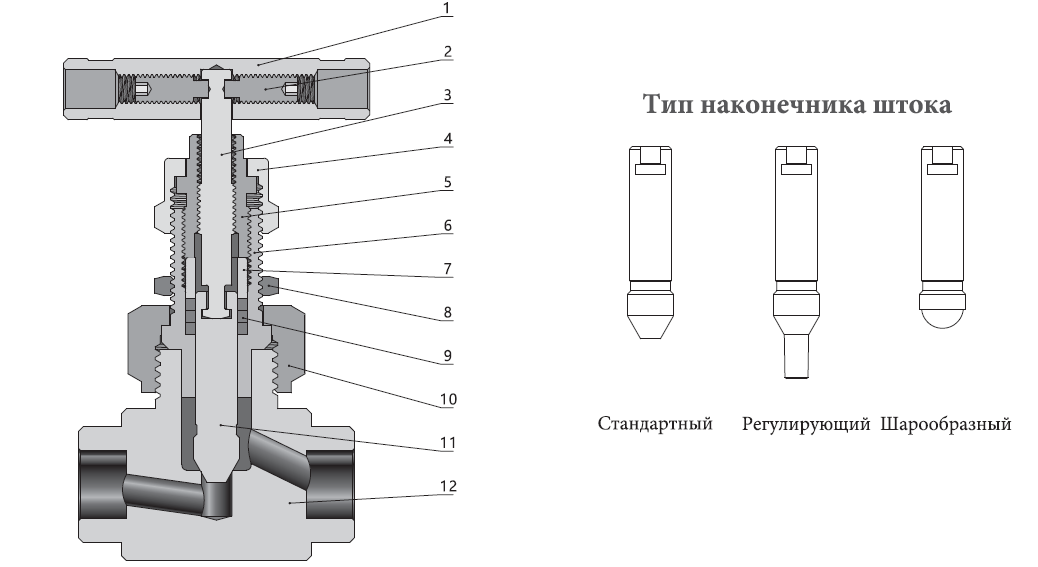

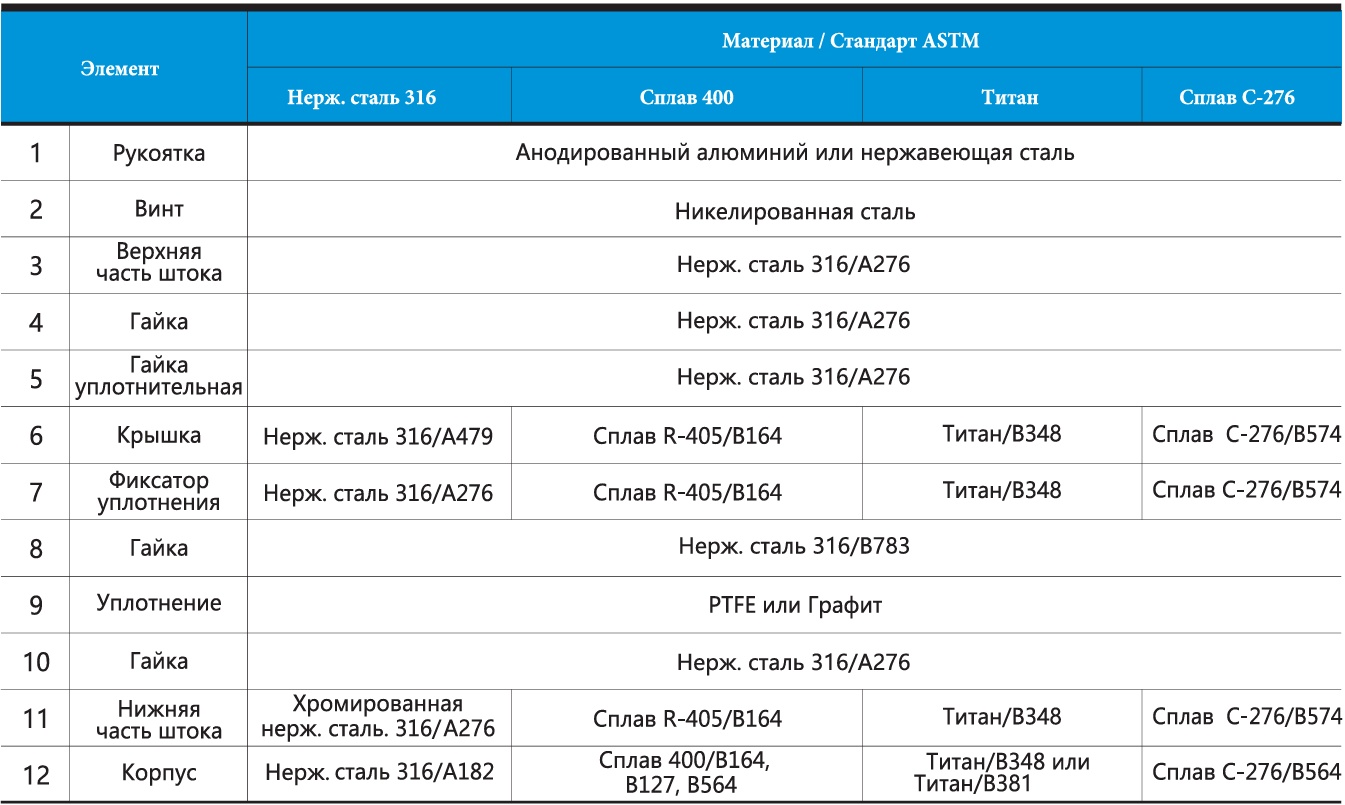

Стандартные используемые материалы

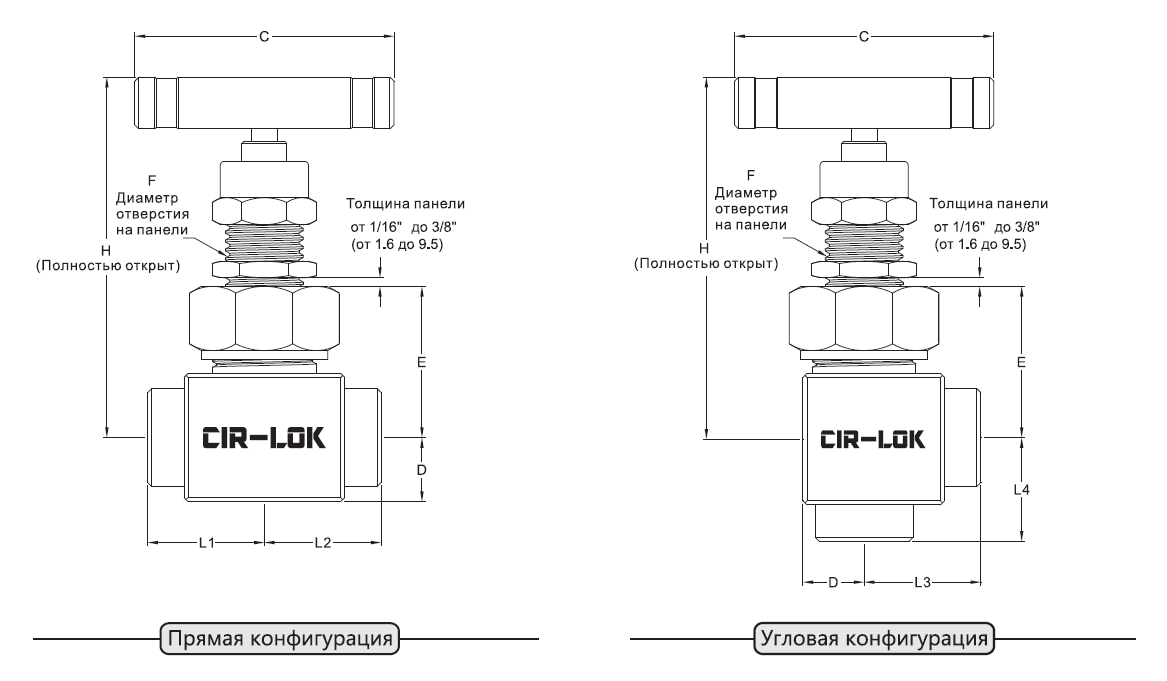

Размеры

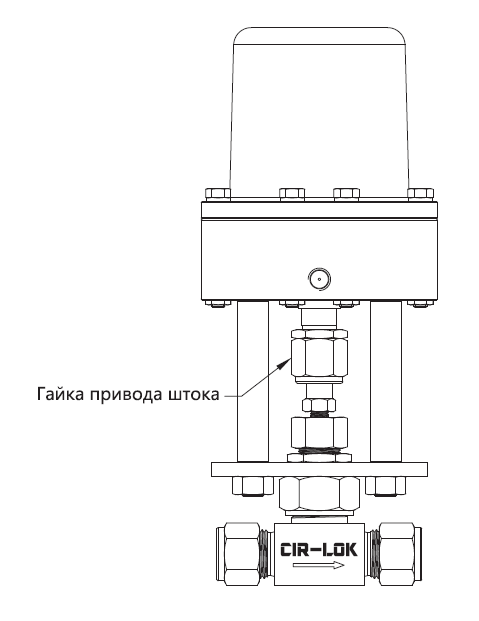

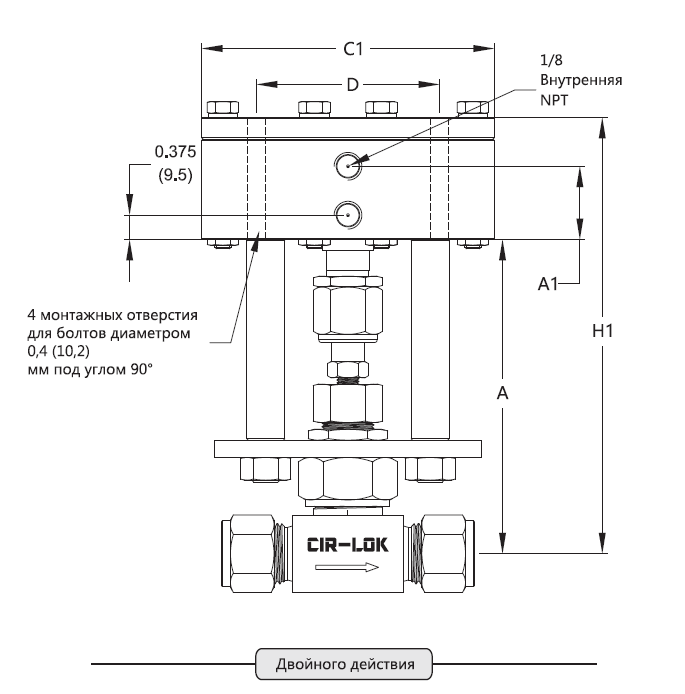

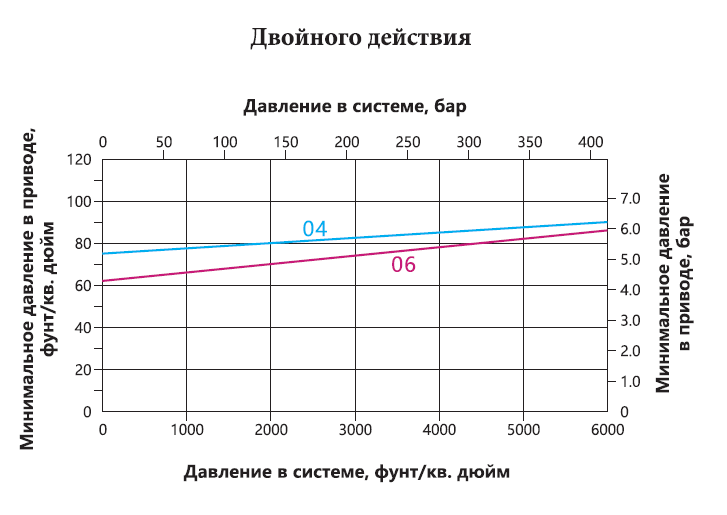

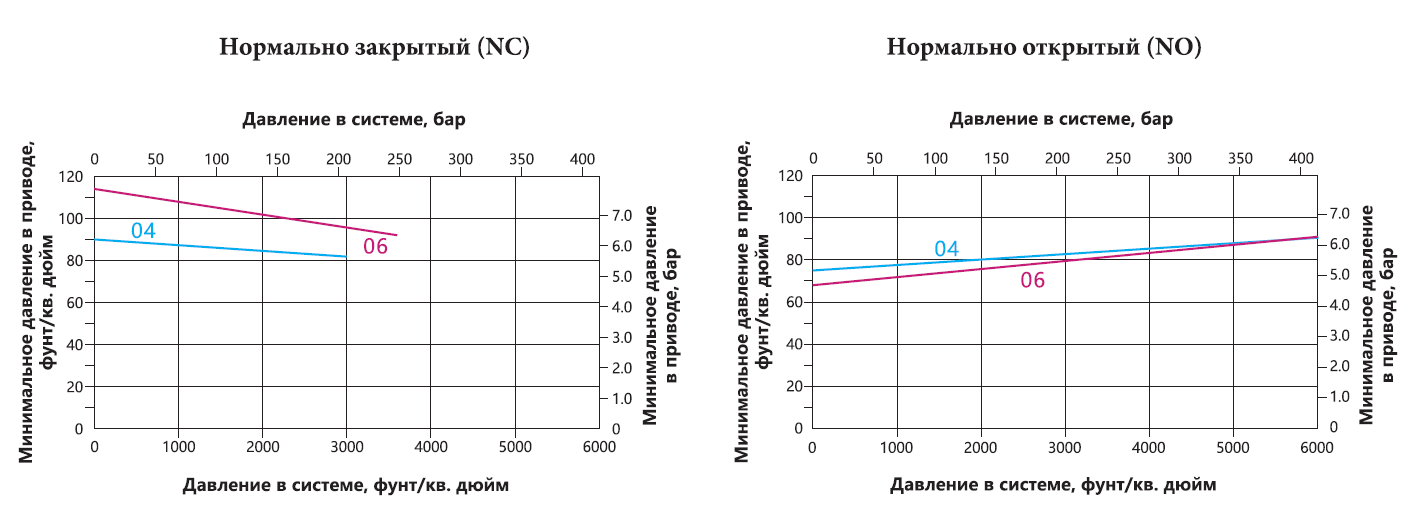

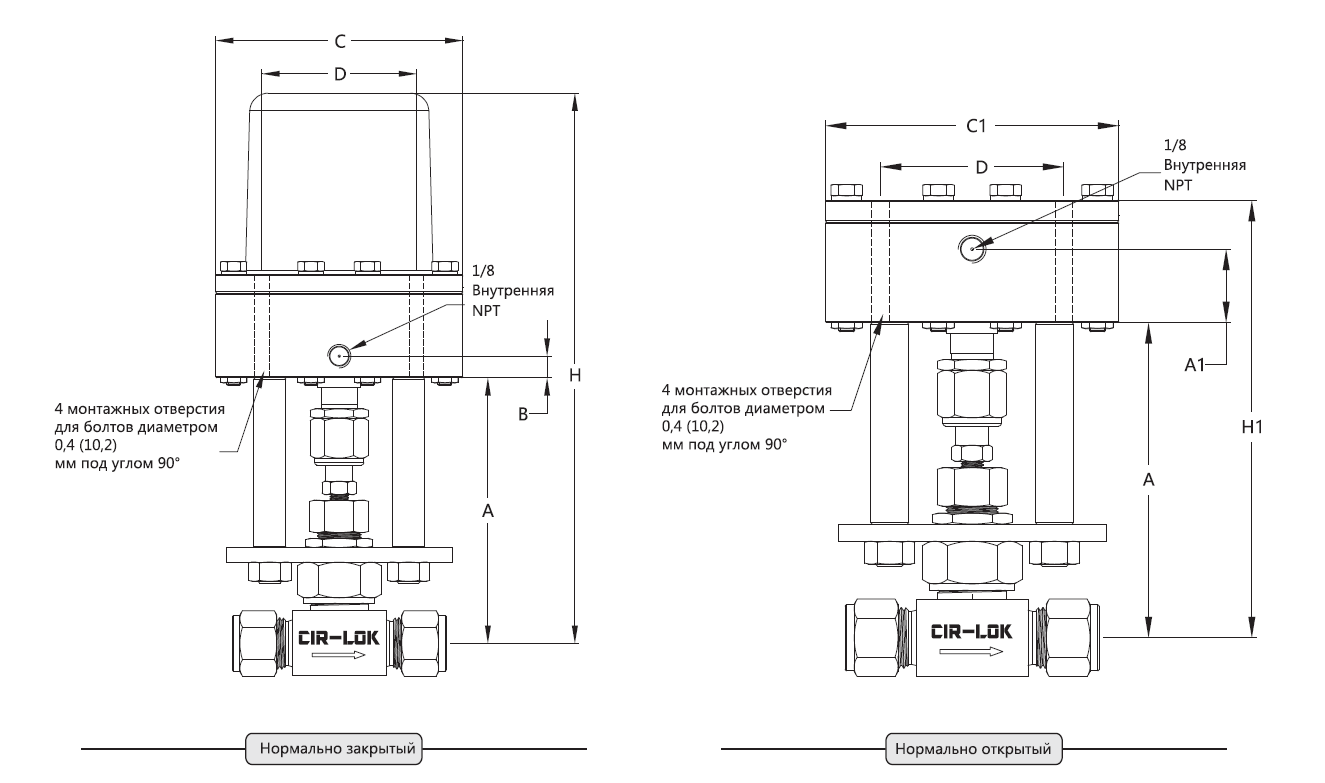

Пневматические приводы

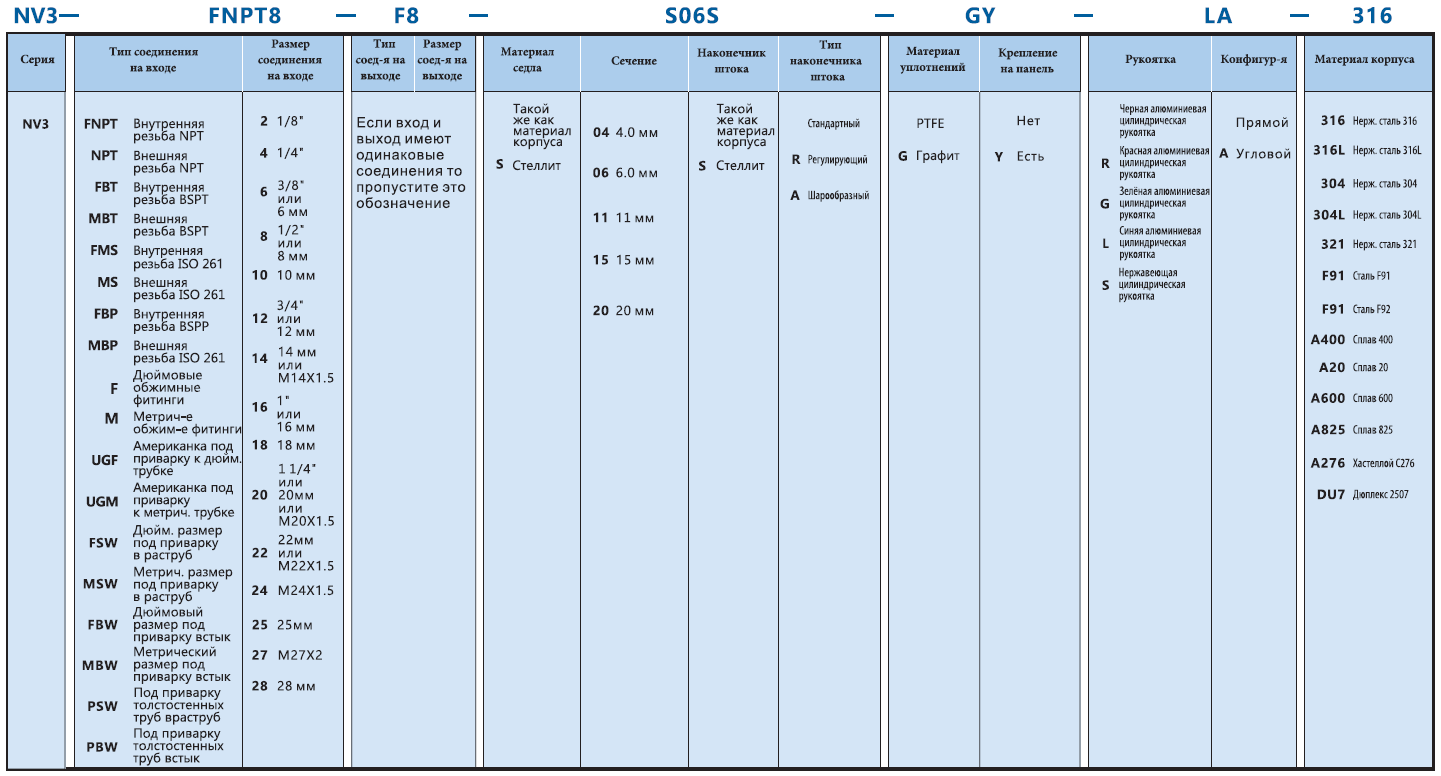

Как заказать
Сортировать:
[{"ID":535,"NAME":"NV3-F12-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-f12-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.85(123)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":534,"NAME":"NV3-F8-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-f8-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.85(123)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":533,"NAME":"NV3-NPT12-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-npt12-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.85(123)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"NPT12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":531,"NAME":"NV3-FNPT12-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-fnpt12-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.85(123)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":530,"NAME":"NV3-FNPT8-11-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-fnpt8-11\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"11","TABLE_EXIT":"0.433(11.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"4.85(123)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":517,"NAME":"NV3-M12-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-m12-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["12"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.70(94)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":516,"NAME":"NV3-M10-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-m10-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["10"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.70(94)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M10","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":515,"NAME":"NV3-F8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-f8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.70(94)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":513,"NAME":"NV3-NPT8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-npt8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.70(94)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"NPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":510,"NAME":"NV3-FNPT4-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-fnpt4-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"06","TABLE_EXIT":"0.236(6.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.70(94)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":508,"NAME":"NV3-M8-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-m8-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":507,"NAME":"NV3-M6-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-m6-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["6"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"M6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":506,"NAME":"NV3-F4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-f4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"F4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":505,"NAME":"NV3-FNPT4-F4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-fnpt4-f4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":504,"NAME":"NV3-NPT4-F4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-npt4-f4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":501,"NAME":"NV3-NPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-npt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":500,"NAME":"NV3-NPT4-FNPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-npt4-fnpt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"},{"ID":499,"NAME":"NV3-FNPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv3\/nv3-fnpt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"04","TABLE_EXIT":"0.157(4.0)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"3.04(77.2)","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/3ec\/158_158_0\/3ec445a9e5ea46f057c42ff4d1e112c3.png"}]
Игольчатые вентили серии NV3 от компании CIR-LOK
Вентиль игольчатый NV3 разработан для точного управления потоком. Он используется там, где требуется надежное перекрытие или плавное регулирование. Конструкция рассчитана на длительную работу без утечек.
Она выдерживает высокие нагрузки. Рабочий диапазон по давлению достигает 413 бар. Температурный режим от -53 до +648 °С. Дополнительно доступно низкотемпературное исполнение до -60°.
Корпус имеет безопасную конфигурацию. Уплотнение расположено до резьбы штока. Оно защищает узел от агрессивной среды. Конструкция сохраняет герметичность даже при максимальных параметрах.
Выпускаются прямые и угловые модели. Для удобства предлагается крепление на панель. Опционально доступны цветные рукоятки. Это облегчает работу и обслуживание. Деталь надежная, не требует частой замены.
Преимущества вентилей игольчатых NV3
Игольчатый вентиль серии NV3 сочетает точность и надежность. Его конструкция рассчитана на использование в ответственных системах. Запорный элемент выдерживает резкие перепады давления.
Вентиль подходит для разных сред. Он предназначается для газа, пара, жидкости и агрессивных составов. Герметичность сохраняется при высоких температурах и нагрузках.
NV серия применяется в ключевых секторах. Она востребована в химической промышленности, энергетике и нефтегазовой отрасли. Используется в лабораториях и опытных установках.
Доступны разные размеры по дюймам и мм. Это упрощает проектирование и монтаж. Каждый клапан соответствует международным стандартам.
Панельное крепление повышает удобство эксплуатации. Цветные рукоятки помогают отличать линии. Конструкция адаптирована под жесткие условия эксплуатации.
Таким образом, каждый элемент — это надежный компонент для любых трубопроводных решений. Он стабильно работает в течение всего срока службы, не требует ремонта и частой замены.
Купить вентиль игольчатый NV3 в Москве
Компания CIR-LOK предлагает полный каталог решений. У нас можно купить стандартные и специальные модели. В наличии прямые и угловые конфигурации.
Цена зависит от модификации и диаметра. Актуальные данные указаны в официальном каталоге. Доступны фото, описание и характеристики.
Для клиентов действует быстрая доставка. В Москве и регионах возможен самовывоз. Поставка организуется по всей России.
Каждый заказ проходит проверку. Упаковка защищает изделия при транспортировке. Это гарантирует получение оборудования без дефектов.
Все комплектующие у нас доступны оптом и в розницу. Для корпоративных клиентов действуют специальные условия. Частные заказчики могут приобрести единичные позиции.
Таким образом, CIR-LOK производит и продает свои решения для профессионального использования. Наша продукция совмещает надежность, долговечность и удобный монтаж.
