Игольчатые вентили серии NV5

- Рабочее давление до 413 бар
- Рабочая температура от -53 до 315 °С
- Низкотемпературное исполнение (от -60°)
- Компактный дизайн
- Возможность подтянуть уплотнение шток не разбирая кран
- Прямая и угловая конфигурация
- Опциональный мягкий наконечник штока
- Опциональные цветные рукоятки
413 бар
от -60 до 315

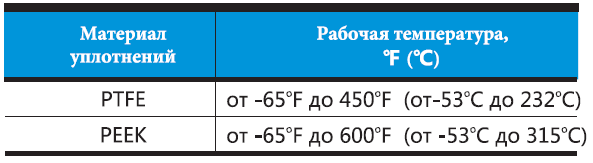

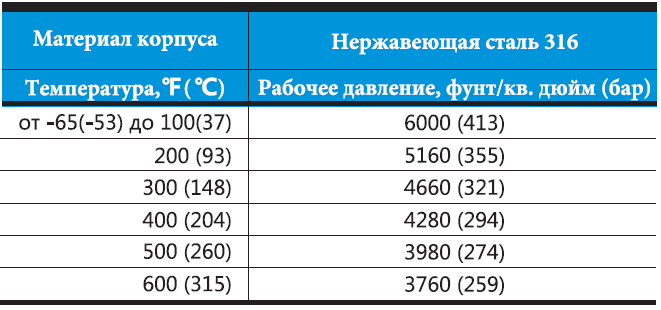

Номинальные параметры давления и температуры

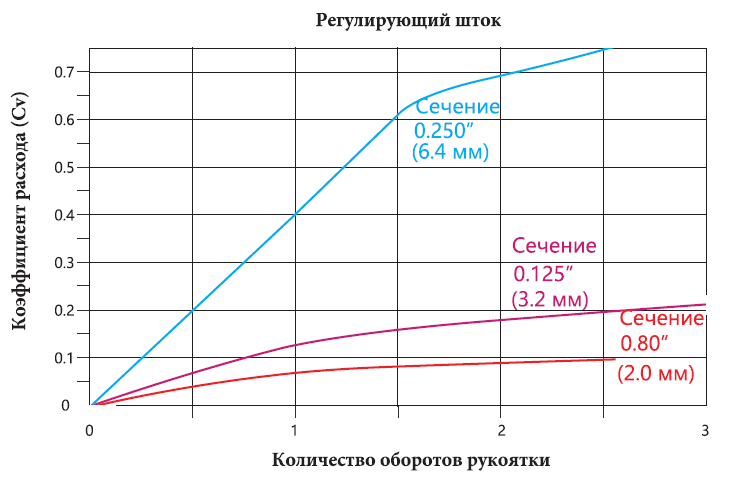

Расход при 37oC (100oF)

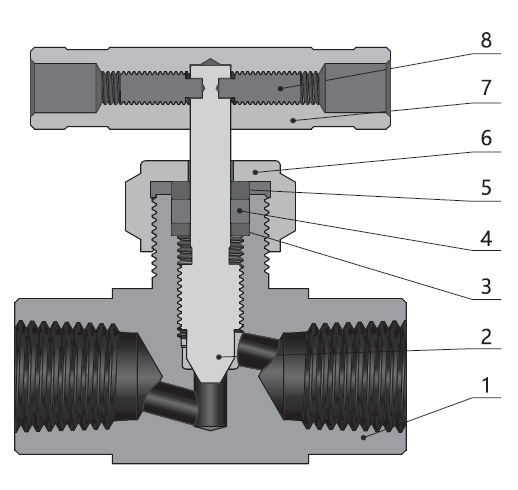

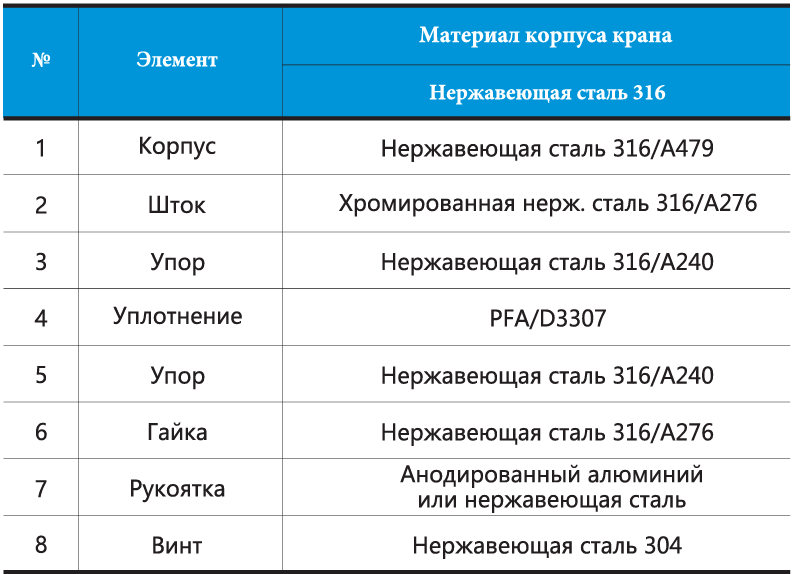

Стандартные используемые материалы

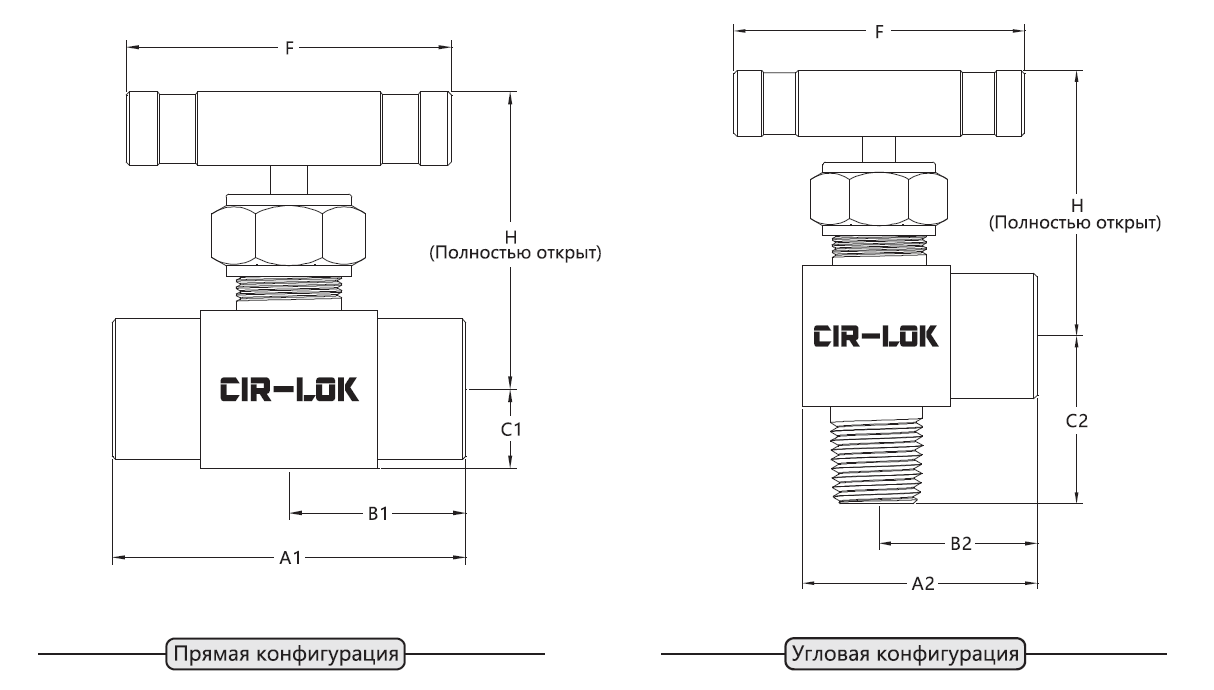

Размеры
Сортировать:
[{"ID":587,"NAME":"NV5-NPT12-FNPT8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv5\/nv5-npt12-fnpt8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.31(58.7)","TABLE_F":"2.50(63.5)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV5","ATT_SOED_SIZE":"NPT12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/518\/158_158_0\/51849372fff7957f58d1516fa00d0e37.png"},{"ID":586,"NAME":"NV5-NPT8-FNPT8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv5\/nv5-npt8-fnpt8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.31(58.7)","TABLE_F":"2.50(63.5)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV5","ATT_SOED_SIZE":"NPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/518\/158_158_0\/51849372fff7957f58d1516fa00d0e37.png"},{"ID":581,"NAME":"NV5-FNPT8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv5\/nv5-fnpt8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.31(58.7)","TABLE_F":"2.50(63.5)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV5","ATT_SOED_SIZE":"FNPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/518\/158_158_0\/51849372fff7957f58d1516fa00d0e37.png"},{"ID":578,"NAME":"NV5-F8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv5\/nv5-f8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.31(58.7)","TABLE_F":"2.50(63.5)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV5","ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/518\/158_158_0\/51849372fff7957f58d1516fa00d0e37.png"}]
