Игольчатые вентили серии NV6

Превью  каталога
  • Максимальное рабочее давление до 300 фунтов на квадратный дюйм (20,6 бар)
  • Рабочая температура от -20 до 200 ℉ (от -28 до 93 ℃)
  • Низкотемпературное исполнение (от -60°)
  • Цельный кованый корпус
  • Прямолинейные, угловые и поперечные схемы течения
  • Быстро открывается и закрывается
  • Плавное отсечение
  • Уплотнительное кольцо штока не требует регулировки
20.6 бар
от -60 до 93

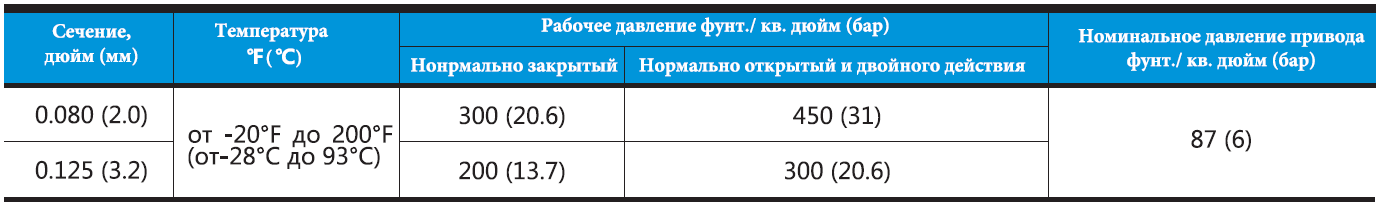

Номинальные параметры давления и температуры

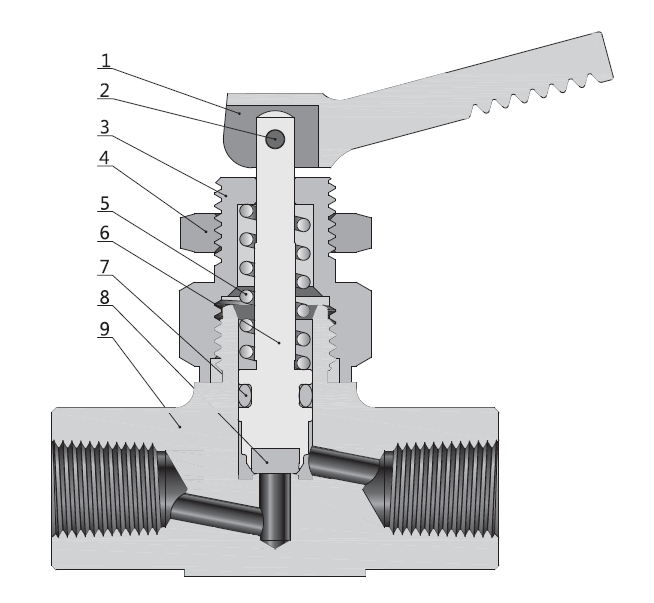

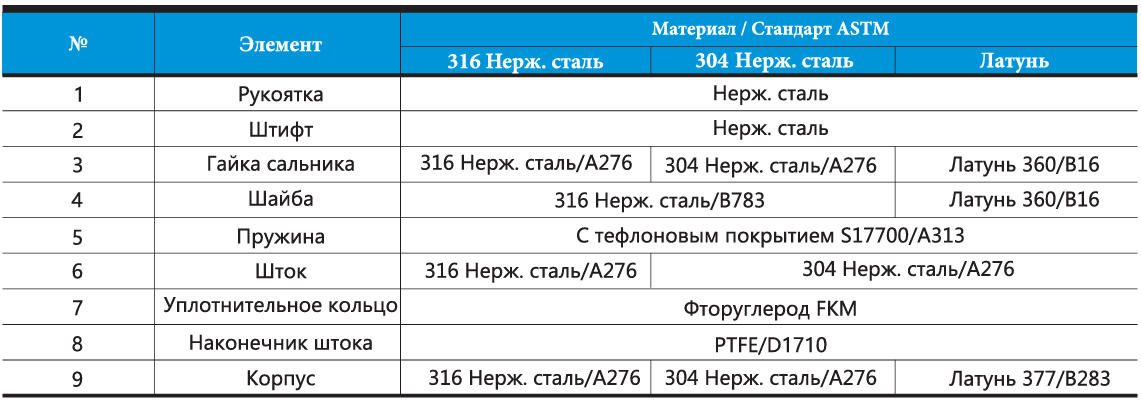

Стандартные используемые материалы

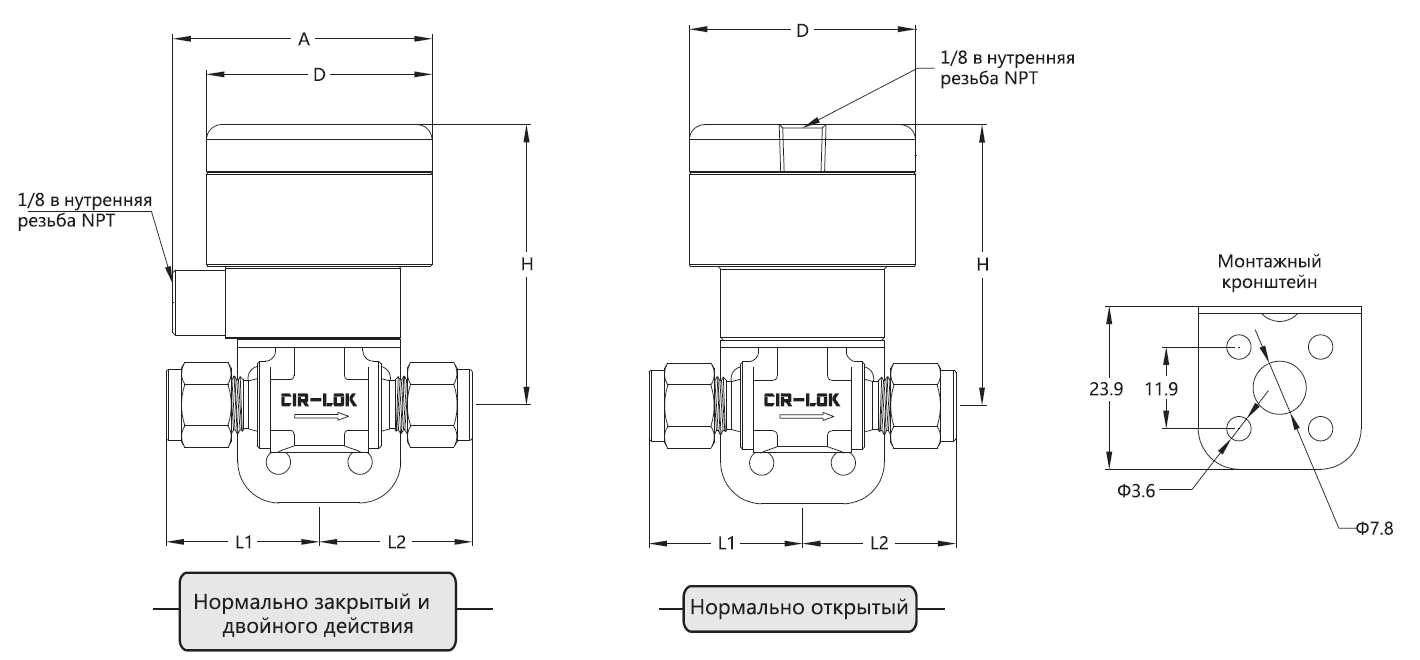

Размеры

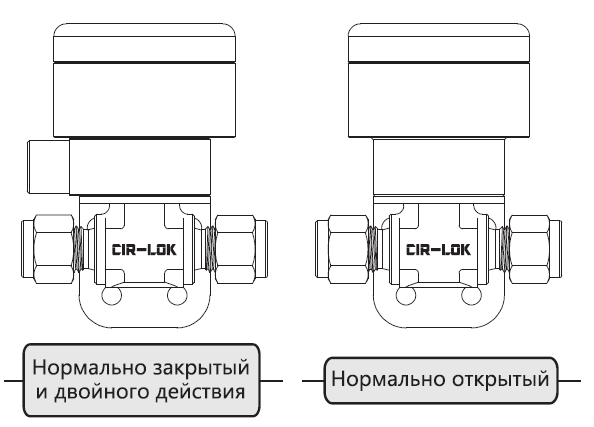

Пневматические приводы

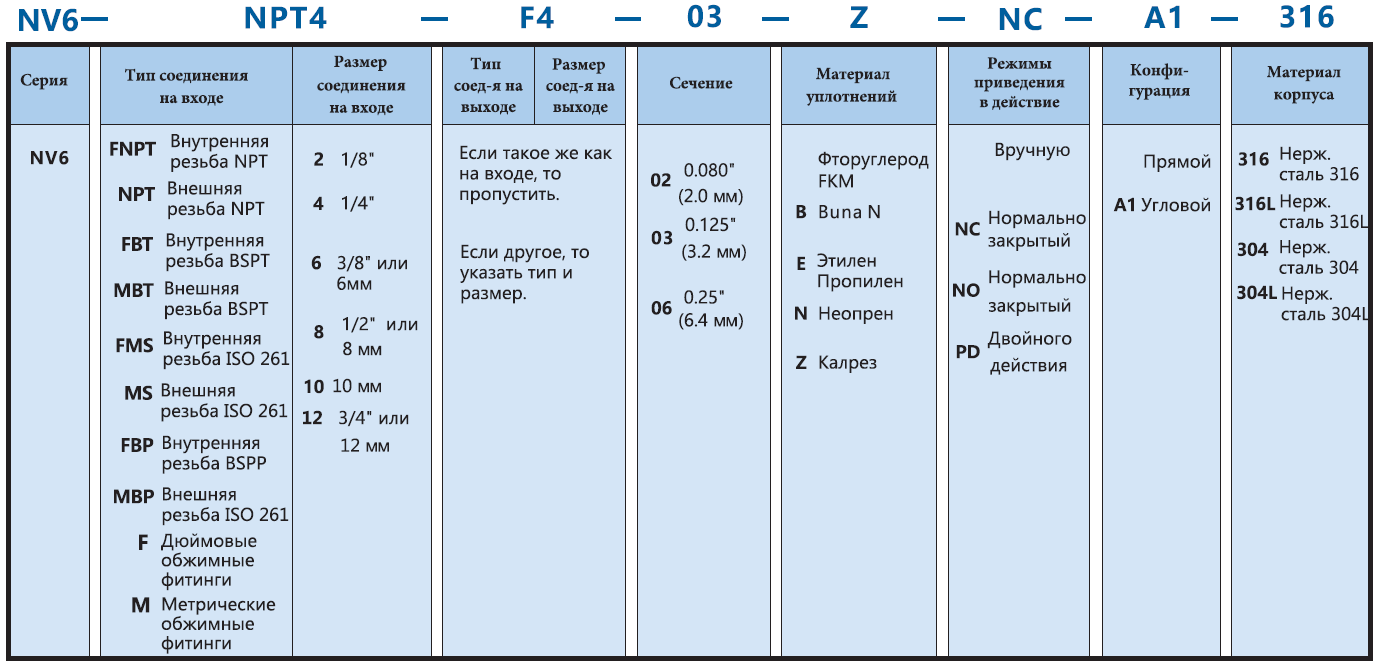

Как заказать
Показать параметры
Подобрать товары по параметрам
Фильтр
Цена
от
до
Тип соединения
Размер соединения
Сечение
Показать товаров {{ELEMENT_COUNT}}

Сортировать:

[{"ID":607,"NAME":"NV6-M12-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv6\/nv6-m12-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["12"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"1.46(37.1)","TABLE_L2":"1.46(37.1)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"3.56(90.4)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV6","ATT_SOED_SIZE":"M12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/397\/158_158_0\/397b495fd713c8cc333ba144fb82e6cf.png"},{"ID":606,"NAME":"NV6-M10-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv6\/nv6-m10-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["10"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"1.36(34.5)","TABLE_L2":"1.36(34.5)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"3.56(90.4)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV6","ATT_SOED_SIZE":"M10","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/397\/158_158_0\/397b495fd713c8cc333ba144fb82e6cf.png"},{"ID":605,"NAME":"NV6-F8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv6\/nv6-f8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"1.4(35.6)","TABLE_L2":"1.4(35.6)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"3.56(90.4)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV6","ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/397\/158_158_0\/397b495fd713c8cc333ba144fb82e6cf.png"},{"ID":601,"NAME":"NV6-FNPT4-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv6\/nv6-fnpt4-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.25(6.4)","TABLE_L1":"1.06(26.9)","TABLE_L2":"1.06(26.9)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"3.56(90.4)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV6","ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/397\/158_158_0\/397b495fd713c8cc333ba144fb82e6cf.png"}]
