Игольчатые вентили серии NV7

- Рабочее давление до 206 бар
- Рабочая температура от -28 до 232 °С
- Низкотемпературное исполнение (от -60°)
- Цельный кованный корпус, конструкция с невращающимся штоком
- Рукоятка предотвращает попадание загрязнений на функциональные детали
- Сменный наконечник штока
- Прямая и угловая конфигурация
- Нержавеющая сталь, латунь и монель
206 бар
от -60 до 232

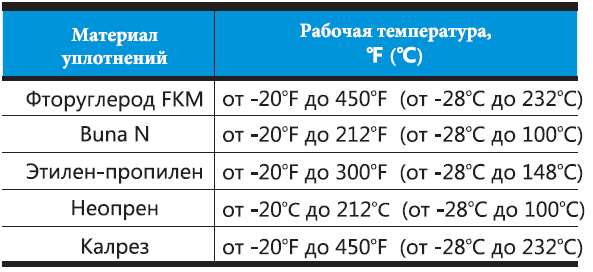

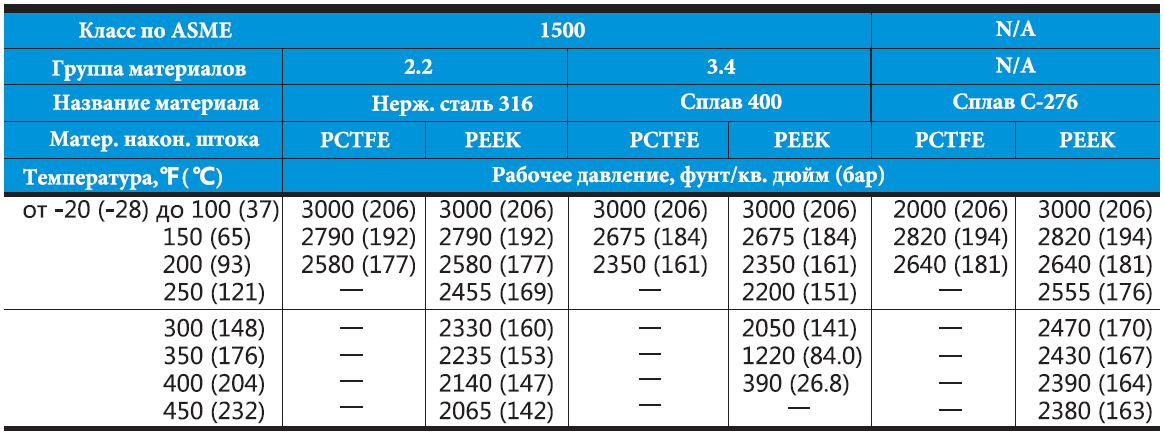

Номинальные параметры давления и температуры

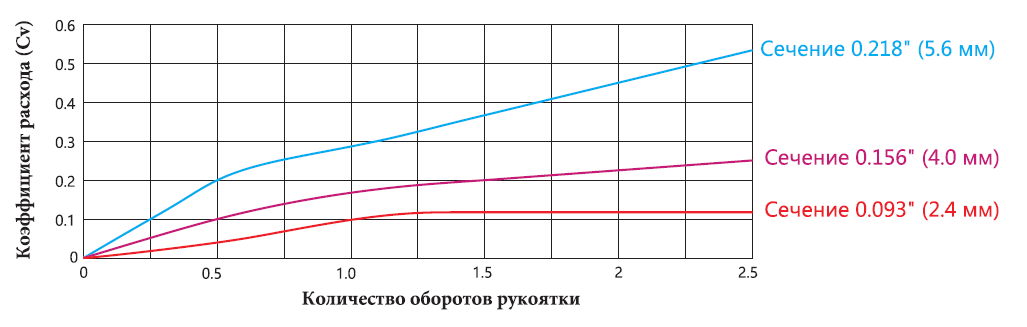

Расход при 37oC (100oF)

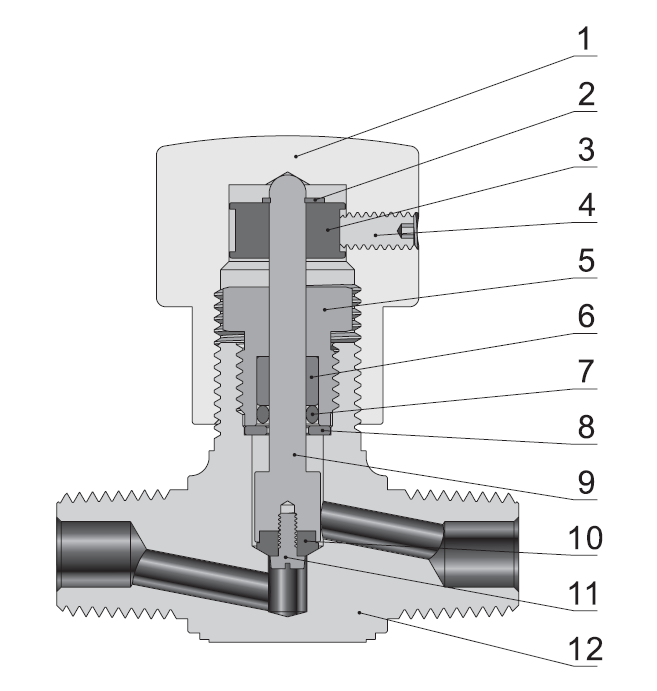

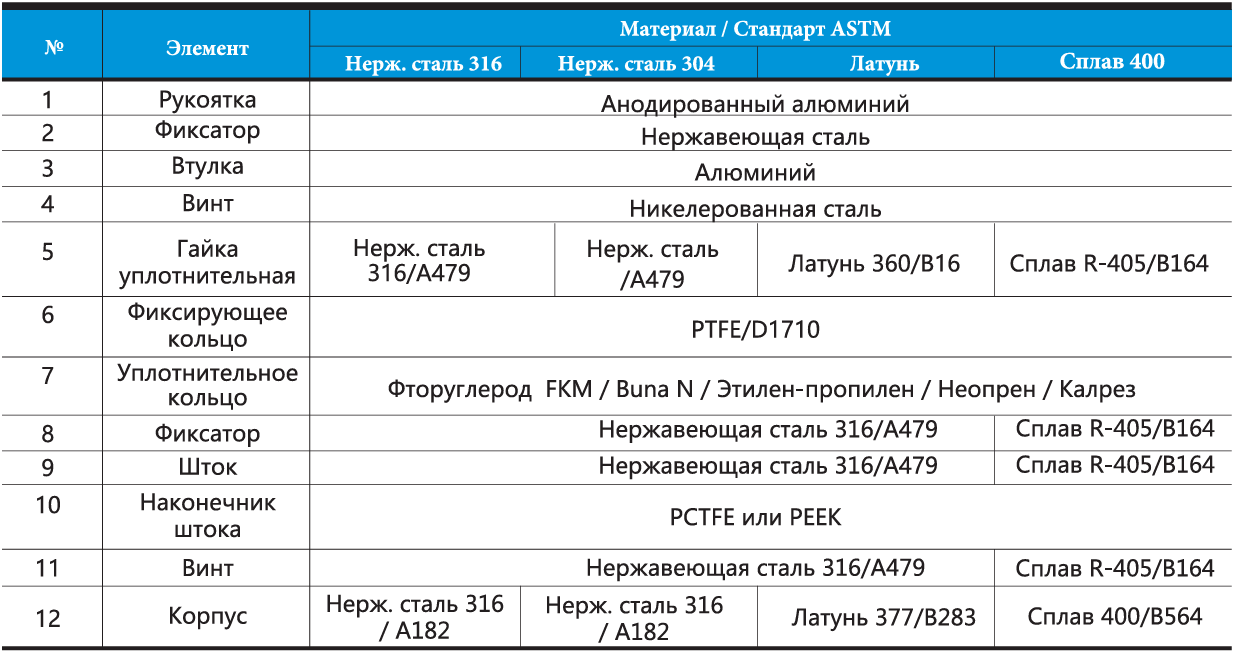

Стандартные используемые материалы



Размеры
Сортировать:
[{"ID":627,"NAME":"NV7-M12-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-m12-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["12"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"06","TABLE_EXIT":"0.218(5.6)","TABLE_L1":"1.4(35.6)","TABLE_L2":"1.4(35.6)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.02(51.3)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"M12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":626,"NAME":"NV7-M10-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-m10-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["10"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"06","TABLE_EXIT":"0.218(5.6)","TABLE_L1":"1.3(33.0)","TABLE_L2":"1.3(33.0)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.02(51.3)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"M10","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":625,"NAME":"NV7-F8-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-f8-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.218(5.6)","TABLE_L1":"1.4(35.6)","TABLE_L2":"1.4(35.6)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.02(51.3)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":621,"NAME":"NV7-FNPT4-06-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-fnpt4-06\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"06","TABLE_EXIT":"0.218(5.6)","TABLE_L1":"1.06(26.9)","TABLE_L2":"1.06(26.9)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"2.02(51.3)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":620,"NAME":"NV7-M8-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-m8-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"04","TABLE_EXIT":"0.156(4.0)","TABLE_L1":"1.13(28.7)","TABLE_L2":"1.13(28.7)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"1.86(47.2)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"M8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":619,"NAME":"NV7-M6-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-m6-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["6"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"04","TABLE_EXIT":"0.156(4.0)","TABLE_L1":"1.13(28.7)","TABLE_L2":"1.13(28.7)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"1.86(47.2)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"M6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":618,"NAME":"NV7-F4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-f4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"04","TABLE_EXIT":"0.156(4.0)","TABLE_L1":"1.13(28.7)","TABLE_L2":"1.13(28.7)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"1.86(47.2)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"F4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":617,"NAME":"NV7-NPT4-F4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-npt4-f4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"04","TABLE_EXIT":"0.156(4.0)","TABLE_L1":"25.0(0.98)","TABLE_L2":"1.13(28.7)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"1.86(47.2)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"},{"ID":616,"NAME":"NV7-NPT4-04-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-seriya-nv7\/nv7-npt4-04\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"04","TABLE_EXIT":"0.156(4.0)","TABLE_L1":"25.0(0.98)","TABLE_L2":"25.0(0.98)","TABLE_H1":"","TABLE_H2":"","TABLE_H":"1.86(47.2)","TABLE_F":"","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"NV7","ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/8a2\/158_158_0\/8a2e1d715abccbd3fd5e467724282d80.png"}]
