Игольчатые вентили тонкой регулировки серии MV4

Превью  каталога
  • Рабочее давление до 344 бар
  • Рабочая температура от -54 до 454 °С
  • Низкотемпературное исполнение (от -60°С)
  • Сечение 1.6 мм

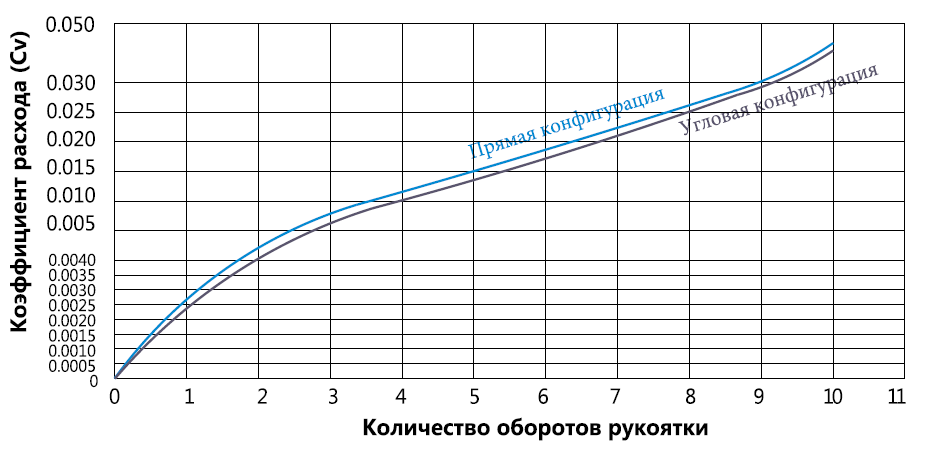

  • Коэффициент расхода: Cv: 0,04
  • Конусность наконечника штока: 2°
  • Возможность перекрытия системы
  • Разнообразие торцевых соединений
  • Крепление на панель
  • Прямая и угловая конфигурации
  • Круглая рукоятка
344 бар
от -60 до 340

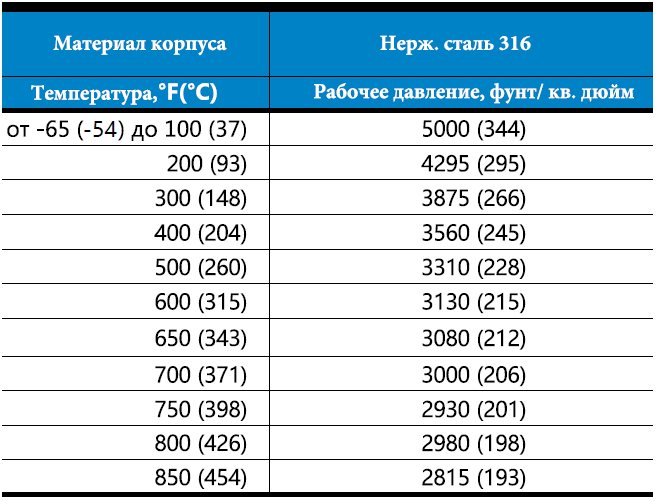

Номинальные параметры давления и температуры

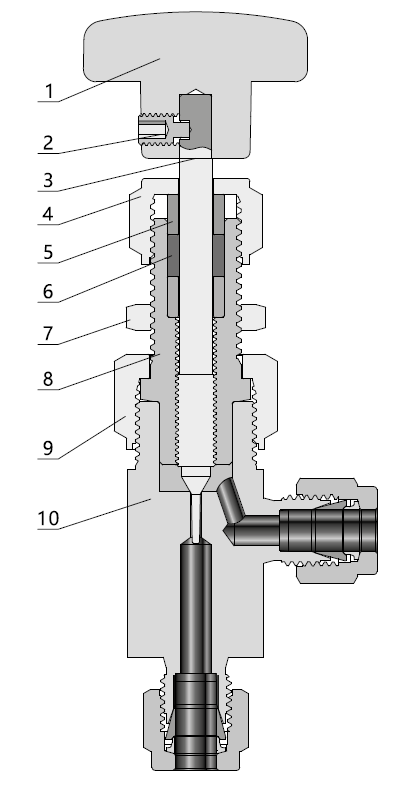

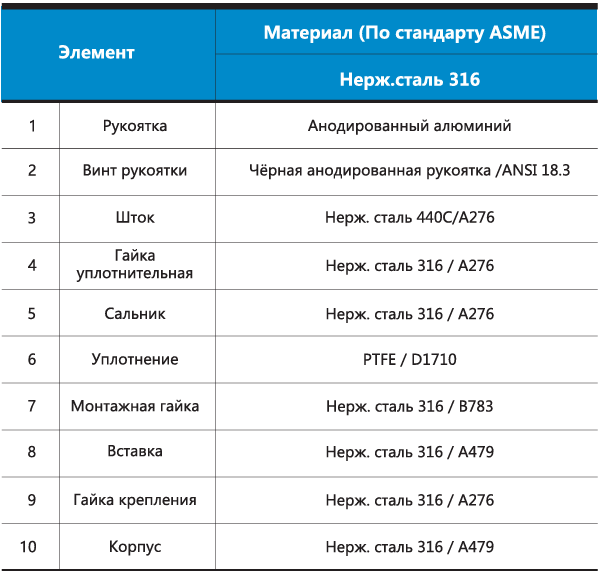

Стандартные используемые материалы

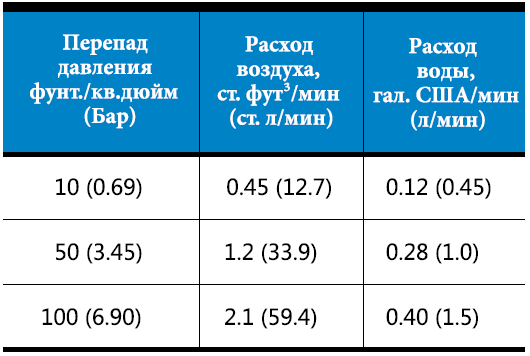

Расход при 20oC (70oF)

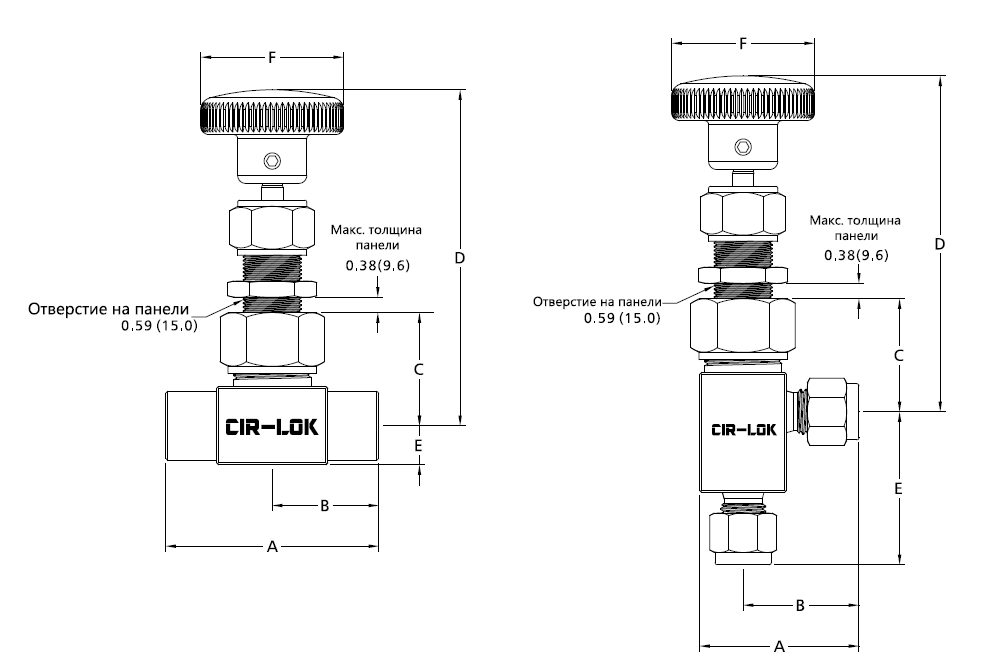

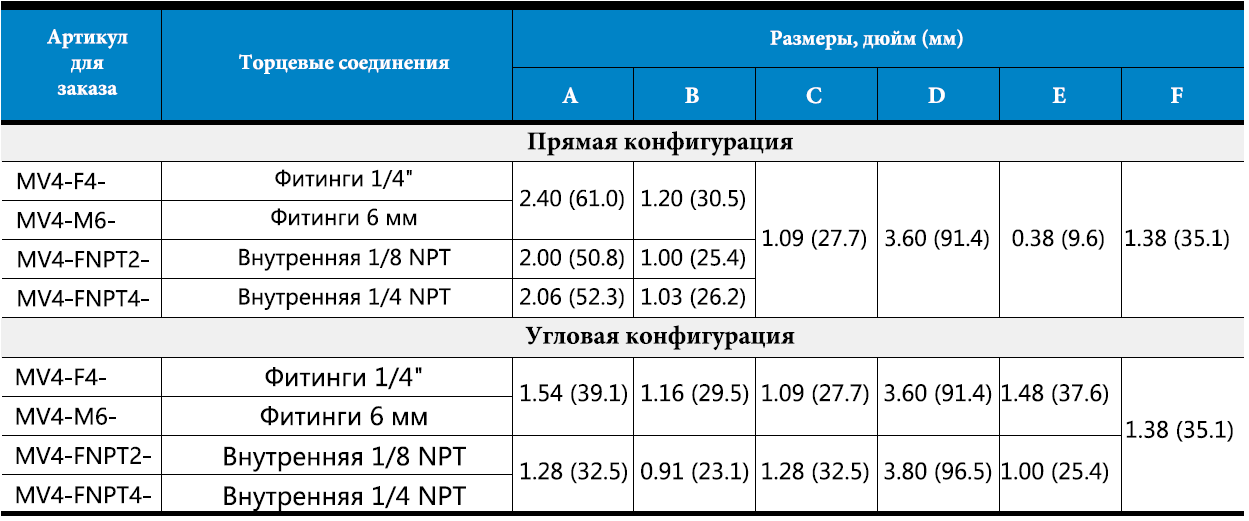

Размеры

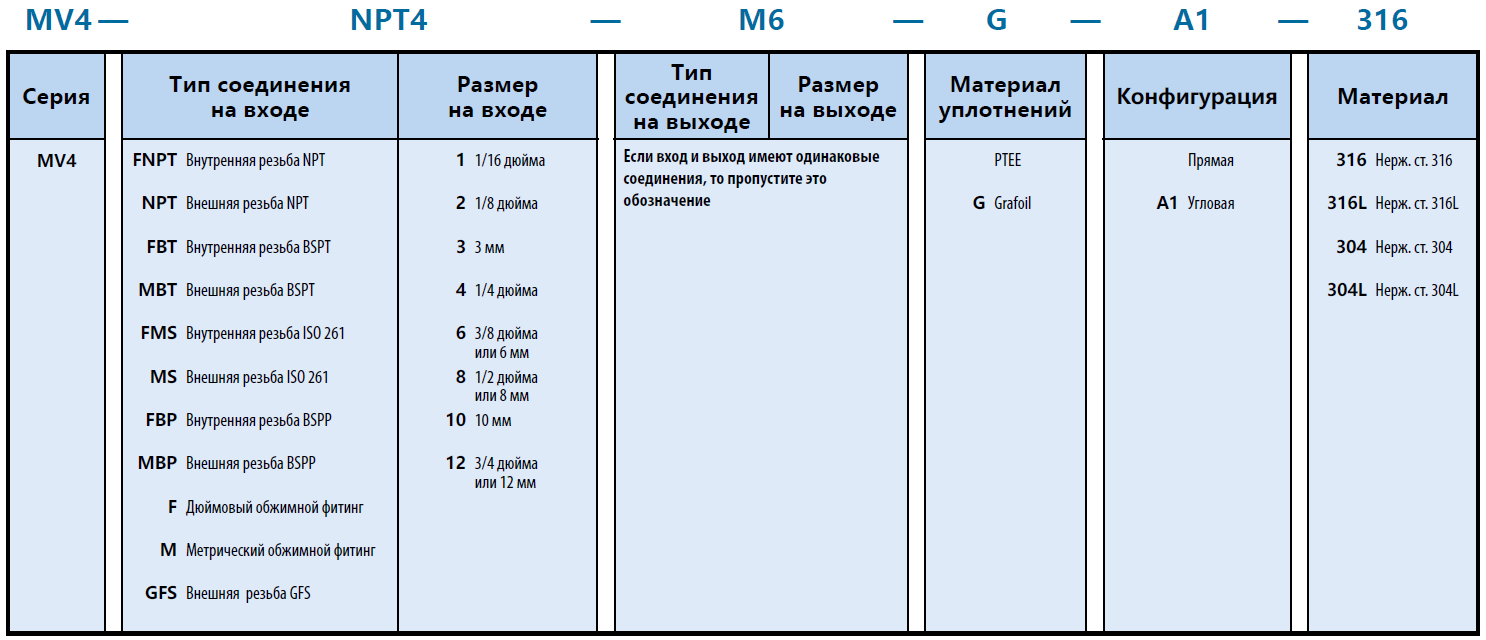

Как заказать
Показать параметры
Подобрать товары по параметрам
Фильтр
Цена
от
до
Тип соединения
Размер соединения
Конфигурация
Показать товаров {{ELEMENT_COUNT}}

Сортировать:

[{"ID":1215,"NAME":"MV4-FNPT4-A-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-fnpt4-a\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u0423\u0433\u043b\u043e\u0432\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1214,"NAME":"MV4-FNPT2-A-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-fnpt2-a\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u0423\u0433\u043b\u043e\u0432\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"FNPT2","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1213,"NAME":"MV4-M6-A-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-m6-a\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["6"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u0423\u0433\u043b\u043e\u0432\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"M6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1212,"NAME":"MV4-F4-A-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-f4-a\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u0423\u0433\u043b\u043e\u0432\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"F4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1211,"NAME":"MV4-FNPT4-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-fnpt4\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u041f\u0440\u044f\u043c\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1210,"NAME":"MV4-FNPT2-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-fnpt2\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u041f\u0440\u044f\u043c\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"FNPT2","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1209,"NAME":"MV4-M6-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-m6\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["6"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u041f\u0440\u044f\u043c\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"M6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"},{"ID":1208,"NAME":"MV4-F4-316","DETAIL_PAGE_URL":"\/igolchatye-ventili-tonkoy-regulirovki-seriya-mv4\/mv4-f4\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"\u041f\u0440\u044f\u043c\u0430\u044f","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"","TABLE_EXIT":"","TABLE_L1":"","TABLE_L2":"","TABLE_H1":"","TABLE_H2":"","TABLE_H":"","TABLE_F":"1.38 (35.1)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"MV4","ATT_SOED_SIZE":"F4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/b12\/158_158_0\/b127c8580d53e334126fcd8c7e6c086f.png"}]
