Обратные клапаны серии CV4
- Максимальное рабочее давление до 206 бар (3000 фунтов/кв. дюйм)
- Рабочая температура от -23°С до 204°С (-10°F до 400°F)
- Низкотемпературное исполнение (от -60°)
- Конструкция из цельного корпуса
- Полностью зафиксированное уплотнительное кольцо
- Давление открытия от 0.02 до 1.7 бар (от 1/3 до 25 фунтов/кв. дюйм)
- Материалы корпуса: нержавеющая сталь 316 , латунь и сплав 400
- Разнообразие торцевых соединений
206 бар
от -60 до 204
Давление открытия

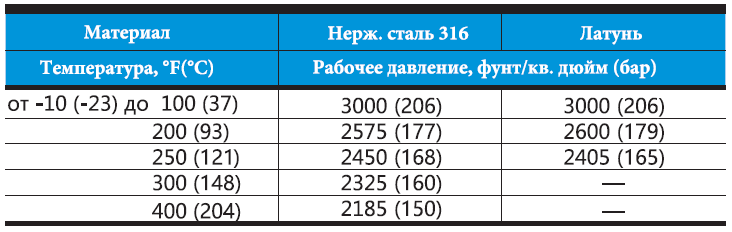

Номинальные параметры давления и температуры

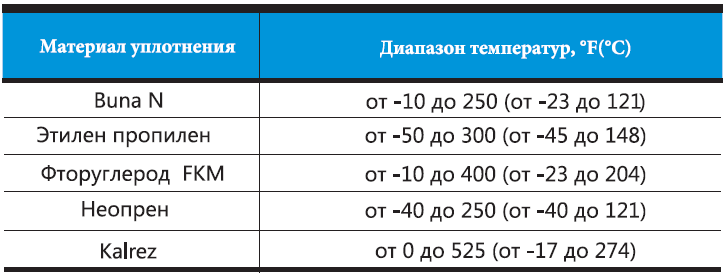

Материал уплотнения

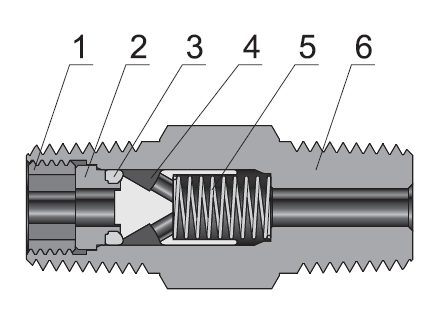

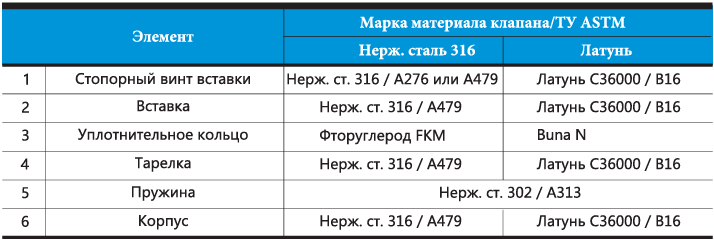

Стандартные материалы

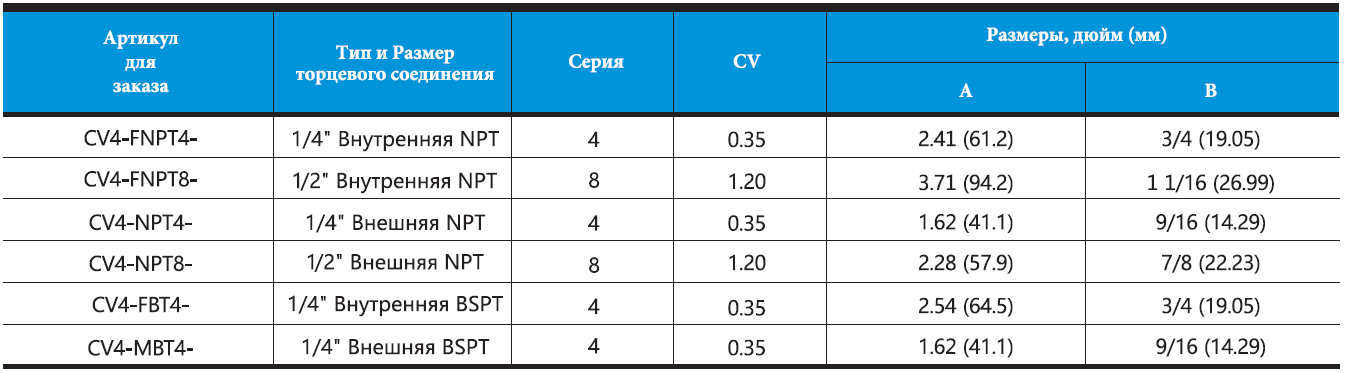

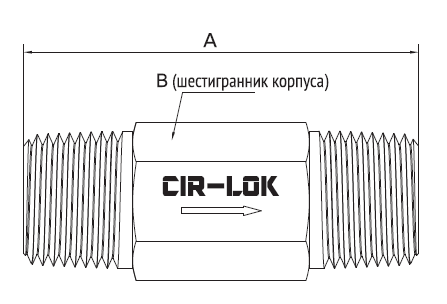

Размеры

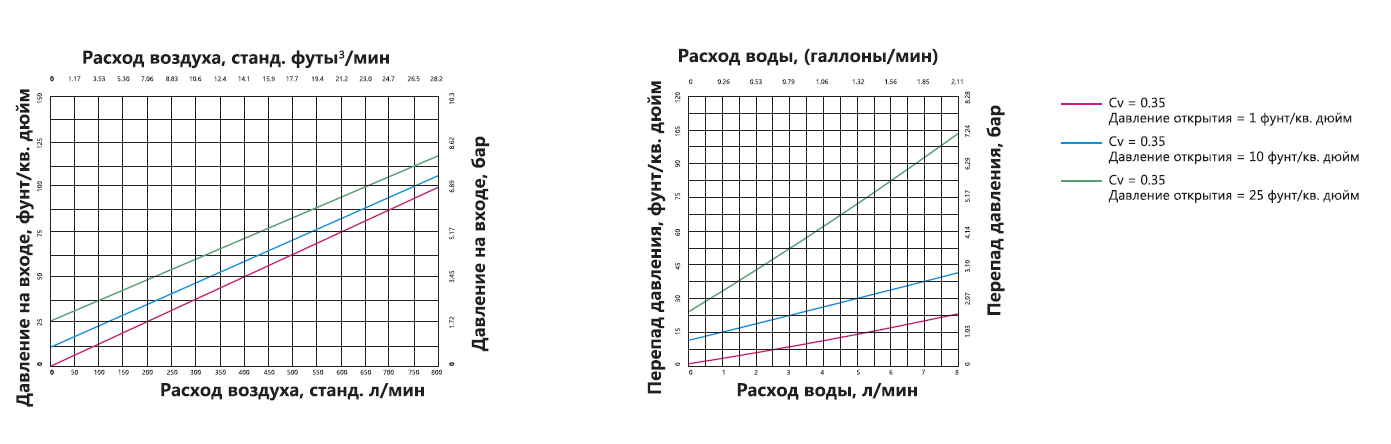

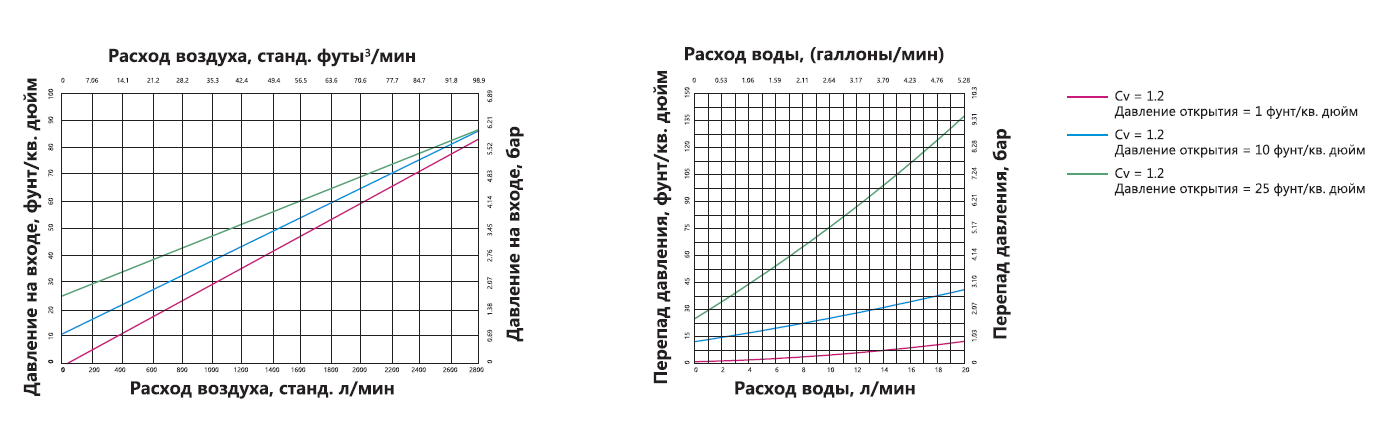

Параметры расхода

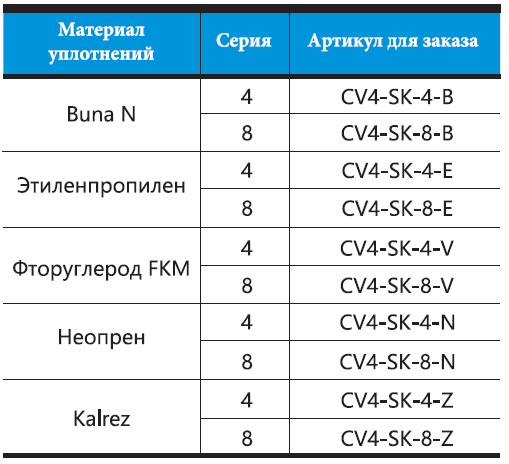

Комплект уплотнений

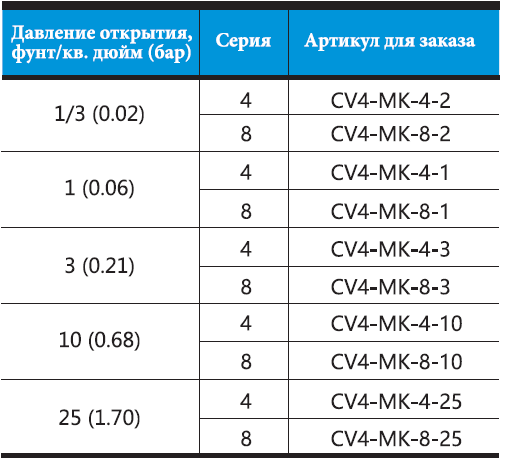

Комплект пружин
Комплект пружин

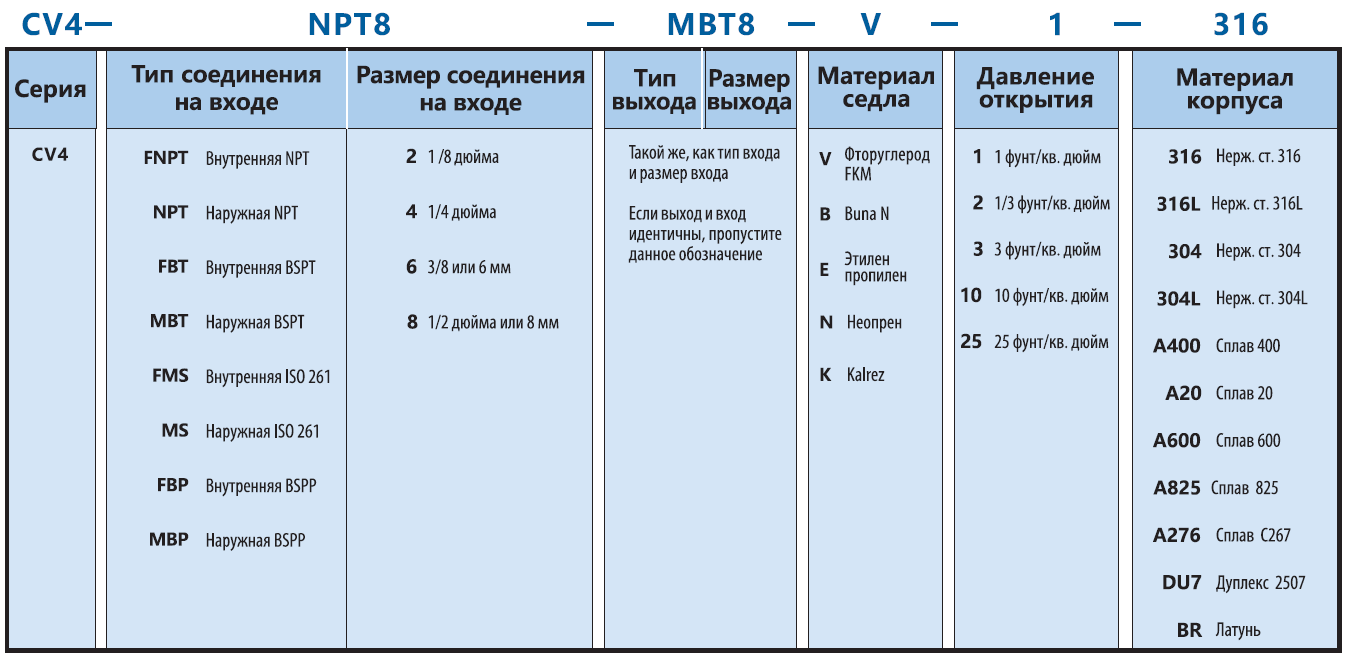

Как заказать
