Обратные клапаны серии CV6

Максимальное рабочее давление до 206 бар (3000 фунт/кв. дюйм)
Рабочая температура от -23°С до 204°С (-10°F до 400°F)
Низкотемпературное исполнение (от -60°)
Полностью зафиксированное уплотнительное кольцо
Настраиваемое давление открытия с набором пружин
Стопорный винт фиксирует установки
Давление открытия: от 0.21 до 41.3 бар (от 3 до 600 фунт/кв. дюйм)
Корпус из Нержавеющая сталь 316, Латуни и Сплава 400
Разнообразие торцевых соединений

206 бар

от -60 до 204

Техническая информация Подбор товара Скачать каталог Скачать чертежи

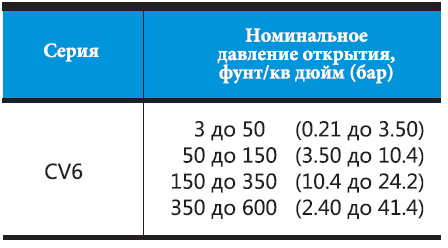

Давление открытия

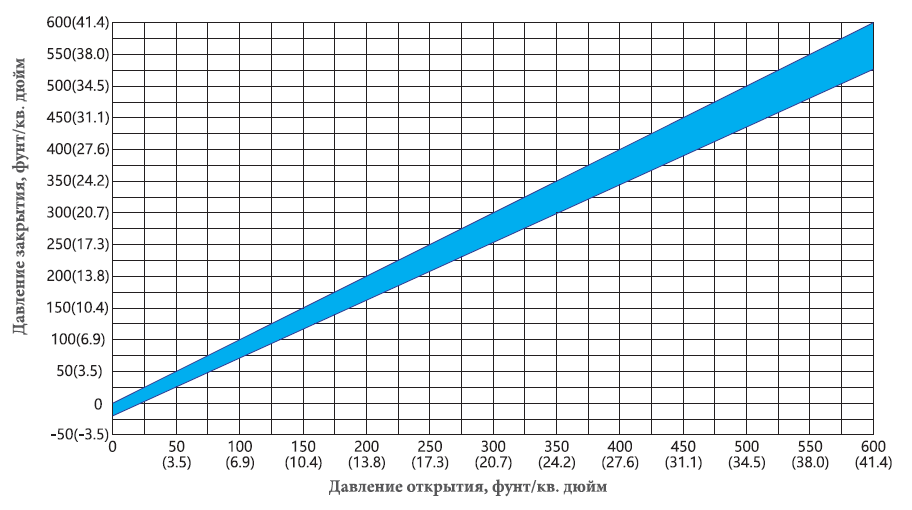

Давление закрытия

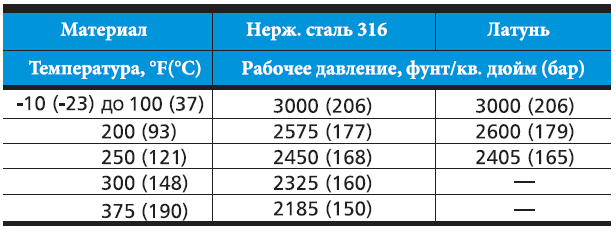

Номинальные параметры давления и температуры

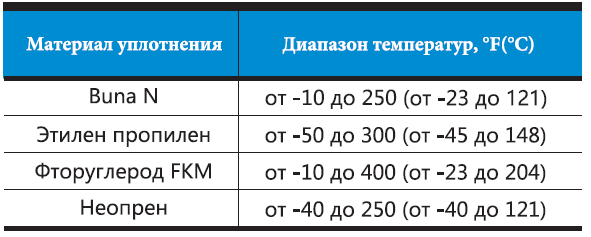

Материал уплотнения

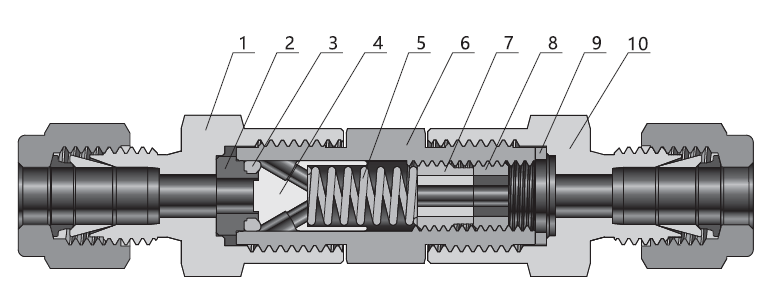

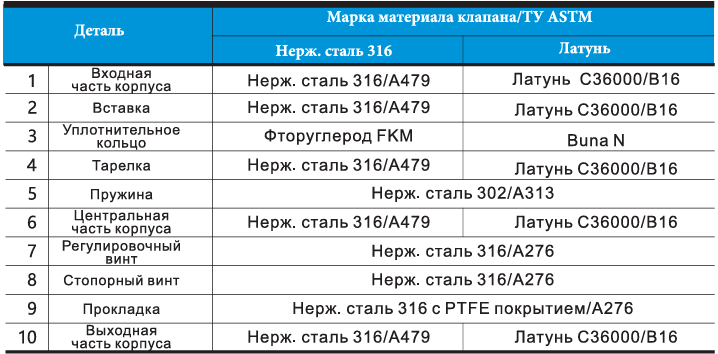

Стандартные материалы

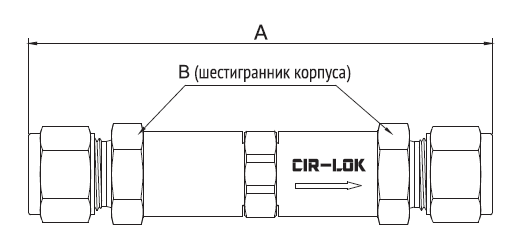

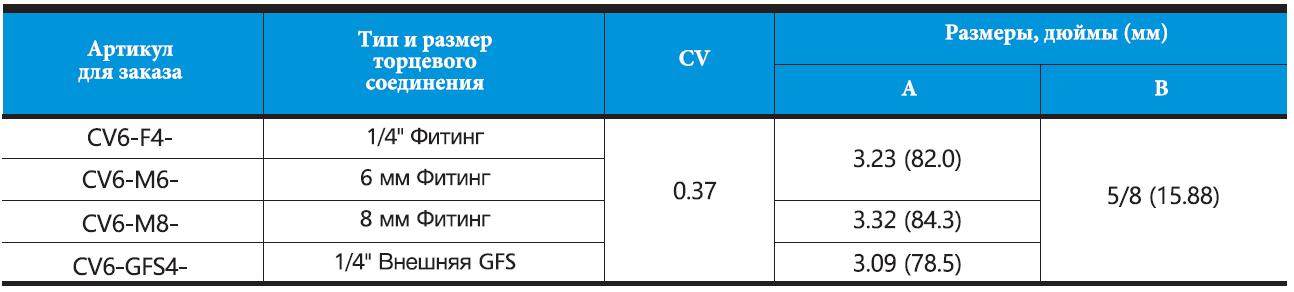

Размеры

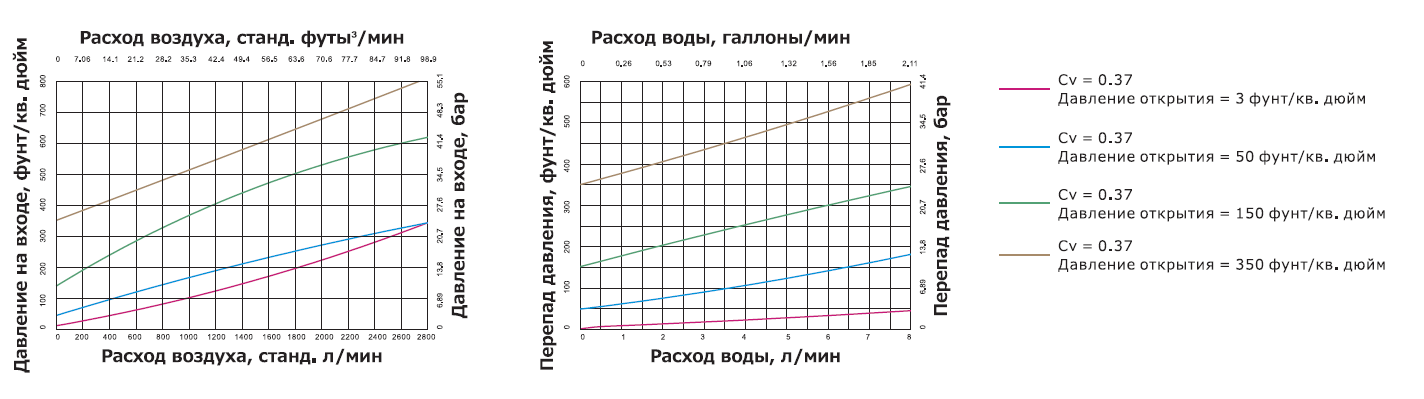

Параметры расхода

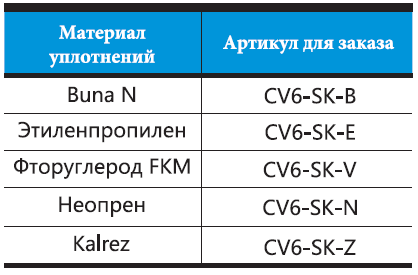

Комплект уплотнений

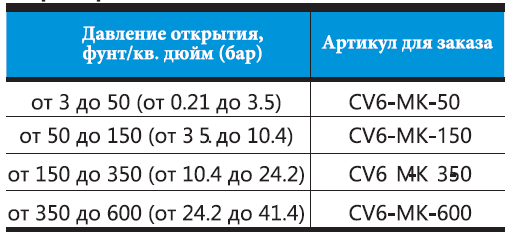

Комплект пружин

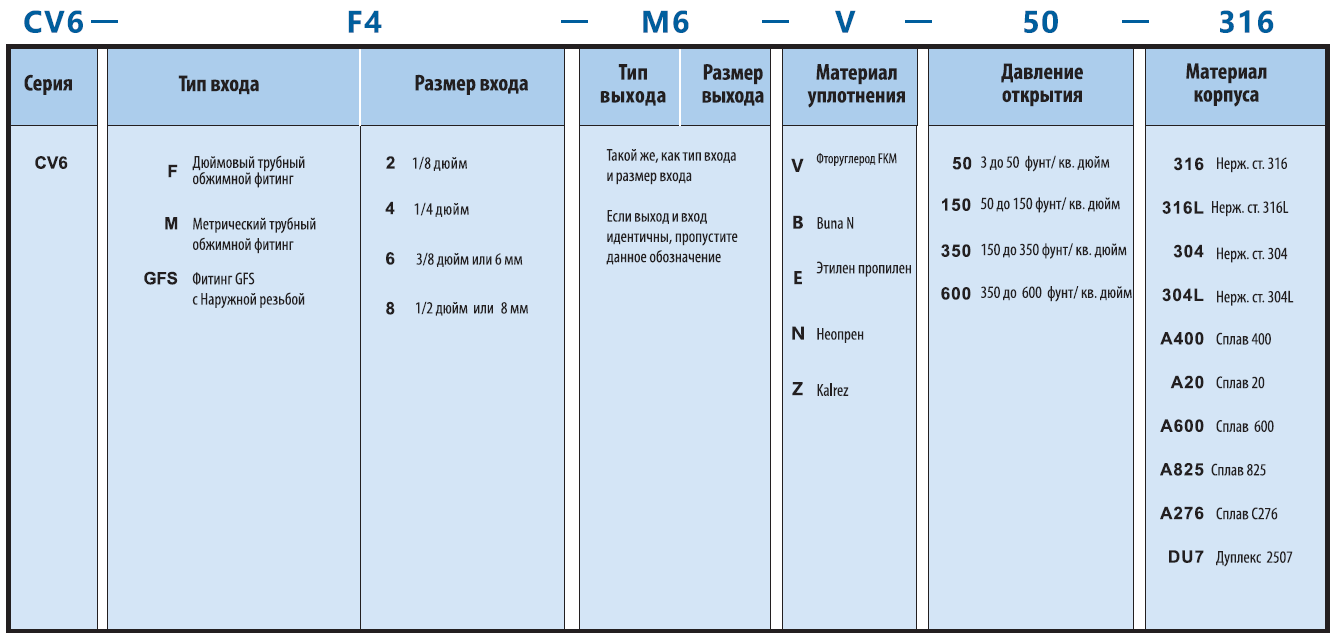

Как заказать
