Предохранительные клапаны серия RV4
- Настраиваемое давление срабатывания от 3.4 до 37.9 бар (5 до 550 фунт/кв. дюйм)
- Условный проход: 0.23" (5.8 мм)
- Низкотемпературное исполнение (от -60°)
- Жидкостные или газовые среды
- Пружина регулируется для обеспечения желаемого заданного давления срабатывания
- Отсутствие трения золотника увеличивает точность срабатывания открытия и возврат в исходное положение
193 бар

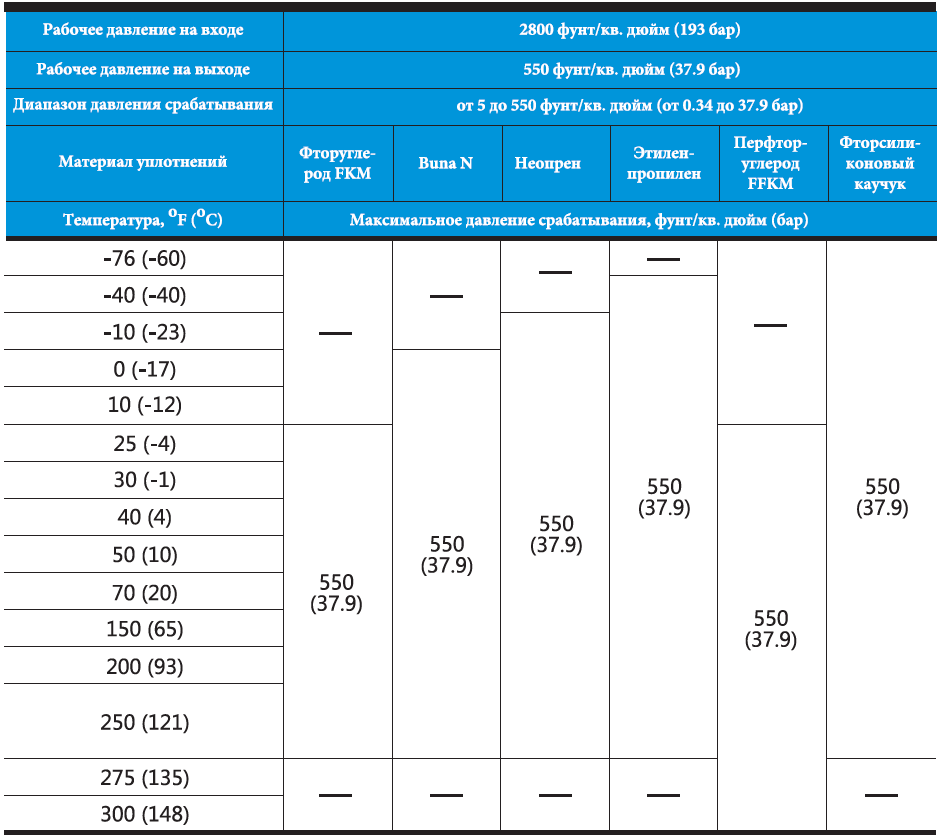

Номинальные параметры давления и температуры

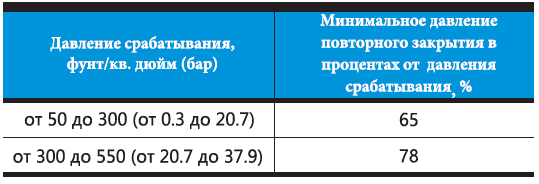

Испытания

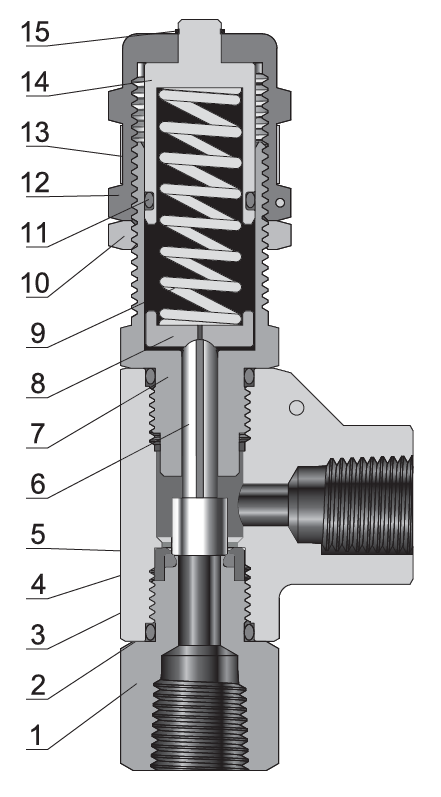

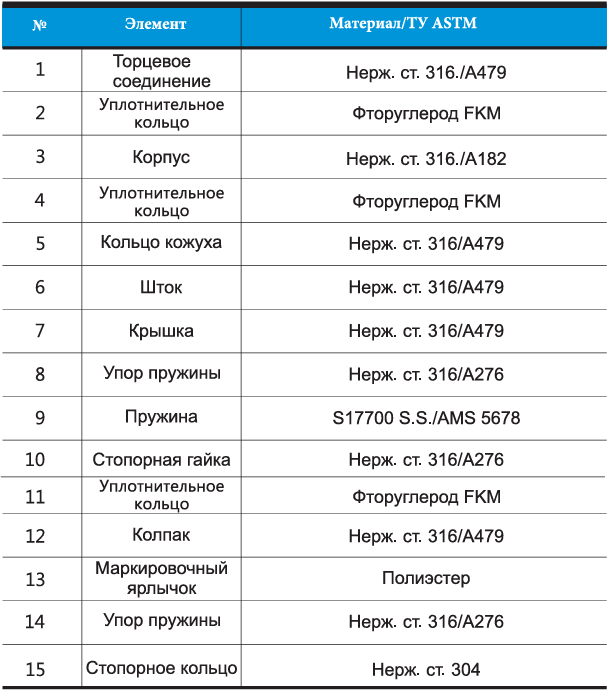

Стандартные материалы

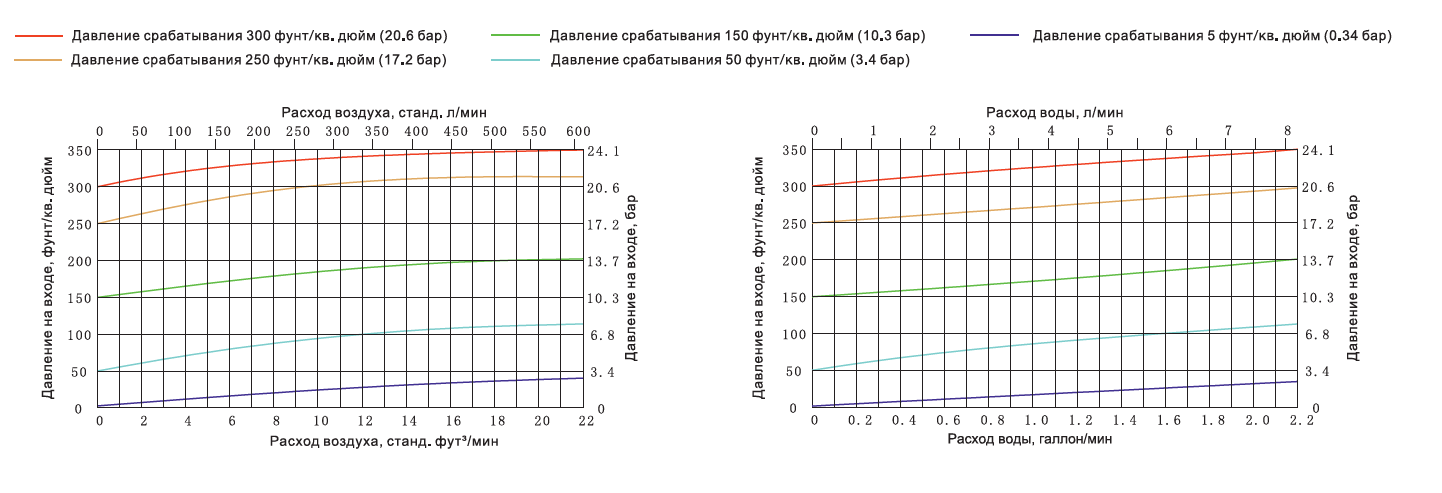

Параметры потока

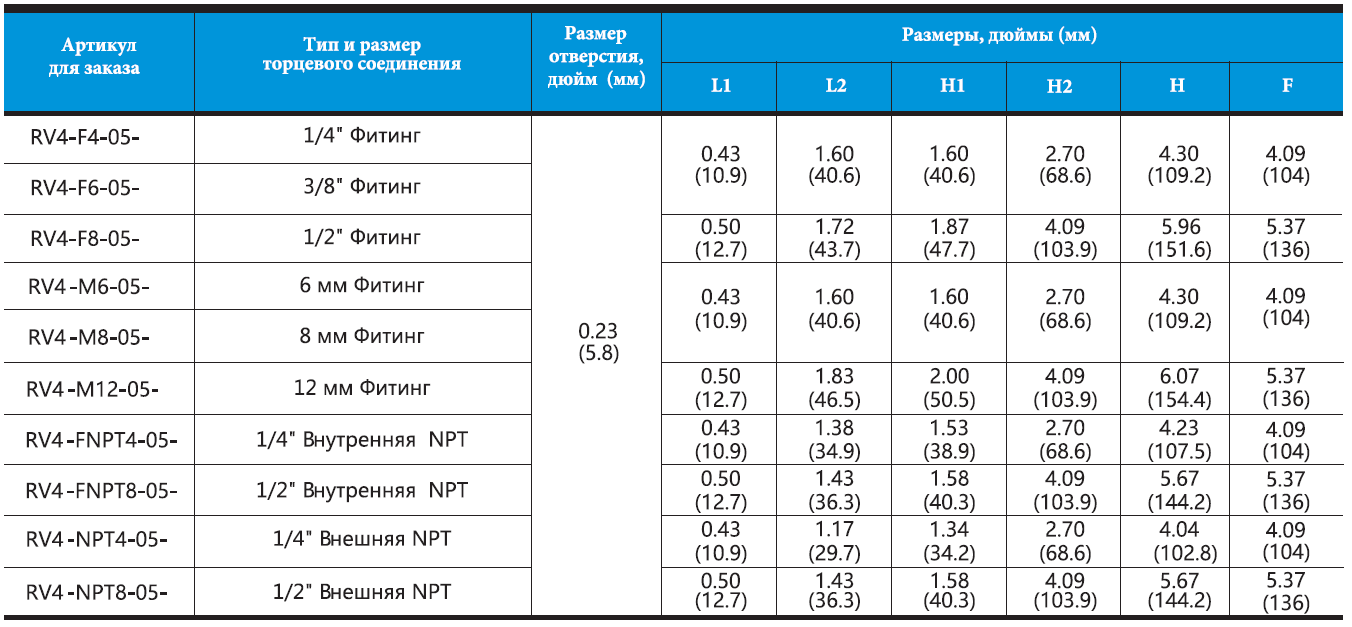

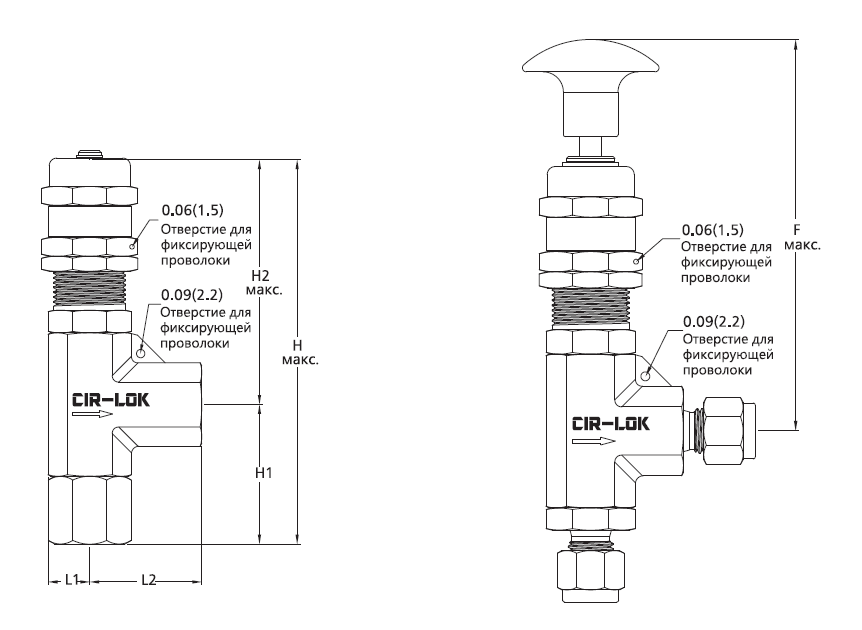

Размеры

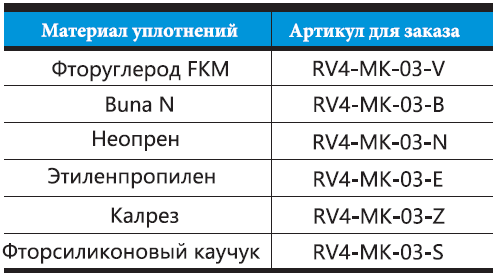

Комплекты уплотнений

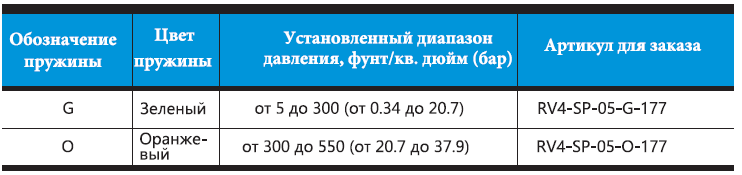

Комплекты пружин
Комплекты пружин

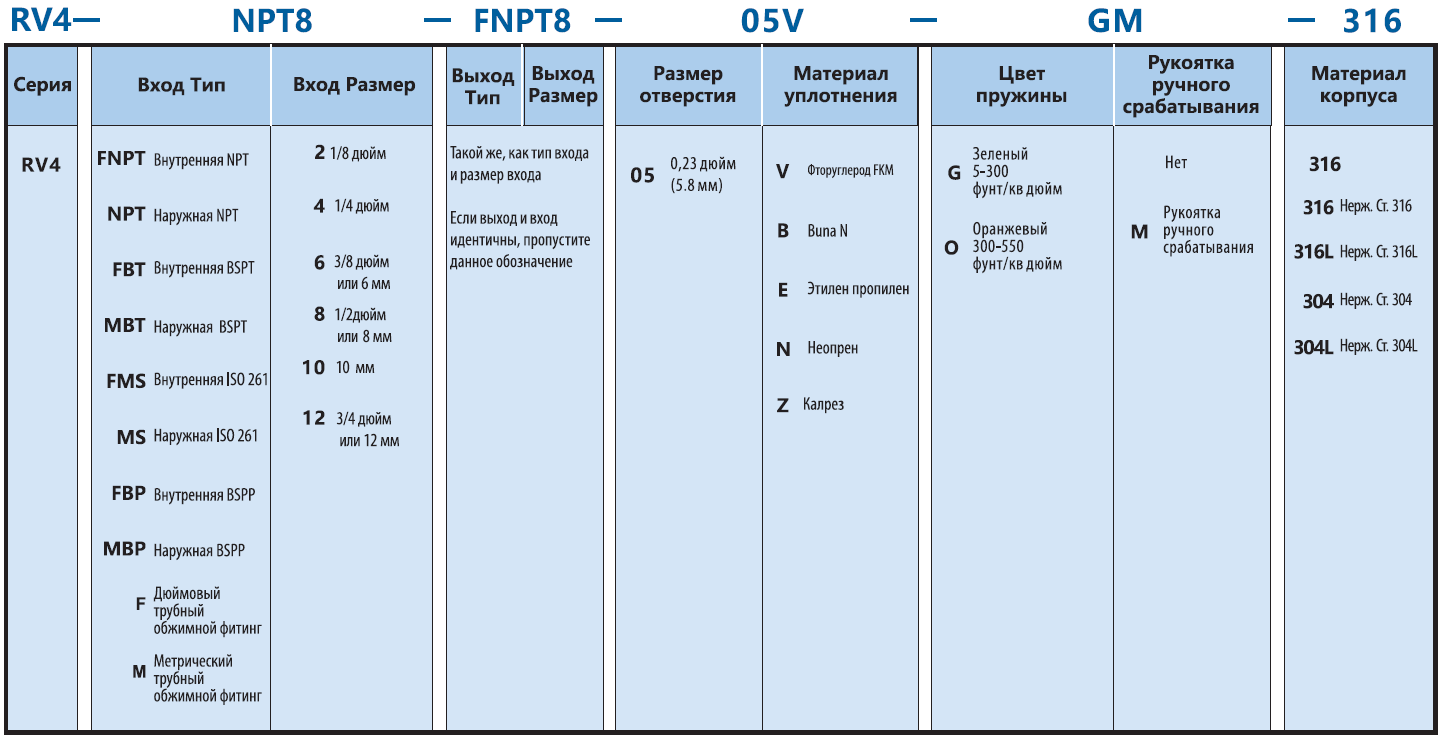

Как заказать
Сортировать:
[{"ID":653,"NAME":"RV4 -NPT8-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-npt8-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.50(12.7)","TABLE_L2":"1.43(36.3)","TABLE_H1":"1.58(40.3)","TABLE_H2":"4.09(103.9)","TABLE_H":"5.67(144.2)","TABLE_F":"5.37(136)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"NPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":652,"NAME":"RV4 -NPT4-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-npt4-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0435\u0448\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.43(10.9)","TABLE_L2":"1.17(29.7)","TABLE_H1":"1.34(34.2)","TABLE_H2":"2.70(68.6)","TABLE_H":"4.04(102.8)","TABLE_F":"4.09(104)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"NPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":651,"NAME":"RV4 -FNPT8-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-fnpt8-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.50(12.7)","TABLE_L2":"1.43(36.3)","TABLE_H1":"1.58(40.3)","TABLE_H2":"4.09(103.9)","TABLE_H":"5.67(144.2)","TABLE_F":"5.37(136)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"FNPT8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":650,"NAME":"RV4 -FNPT4-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-fnpt4-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.43(10.9)","TABLE_L2":"1.38(34.9)","TABLE_H1":"1.53(38.9)","TABLE_H2":"2.70(68.6)","TABLE_H":"4.23(107.5)","TABLE_F":"4.09(104)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"FNPT4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":649,"NAME":"RV4 -M12-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-m12-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["12"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.50(12.7)","TABLE_L2":"1.83(46.5)","TABLE_H1":"2.00(50.5)","TABLE_H2":"4.09(103.9)","TABLE_H":"6.07(154.4)","TABLE_F":"5.37(136)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"M12","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":648,"NAME":"RV4 -M8-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-m8-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.43(10.9)","TABLE_L2":"1.60(40.6)","TABLE_H1":"1.60(40.6)","TABLE_H2":"2.70(68.6)","TABLE_H":"4.30(109.2)","TABLE_F":"4.09(104)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"M8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":647,"NAME":"RV4 -M6-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4%20-m6-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u041c\u0435\u0442\u0440\u0438\u0447\u0435\u0441\u043a\u0438\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["6"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u041c\u0435\u0442\u0440","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.43(10.9)","TABLE_L2":"1.60(40.6)","TABLE_H1":"1.60(40.6)","TABLE_H2":"2.70(68.6)","TABLE_H":"4.30(109.2)","TABLE_F":"4.09(104)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"M6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":646,"NAME":"RV4-F8-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4-f8-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/2"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.50(12.7)","TABLE_L2":"1.72(43.7)","TABLE_H1":"1.87(47.7)","TABLE_H2":"4.09(103.9)","TABLE_H":"5.96(151.6)","TABLE_F":"5.37(136)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"F8","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":645,"NAME":"RV4-F6-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4-f6-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/8"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.43(10.9)","TABLE_L2":"1.60(40.6)","TABLE_H1":"1.60(40.6)","TABLE_H2":"2.70(68.6)","TABLE_H":"4.30(109.2)","TABLE_F":"4.09(104)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"F6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"},{"ID":644,"NAME":"RV4-F4-05-316","DETAIL_PAGE_URL":"\/predokhranitelnye-klapany-seriya-rv4\/rv4-f4-05\/","ATT_TYPE_FITTING":"","ATT_SOED":"\u0414\u044e\u0439\u043c\u043e\u0432\u044b\u0439 \u043e\u0431\u0436\u0438\u043c\u043d\u043e\u0439 \u0444\u0438\u0442\u0438\u043d\u0433","ATT_MAT":"","ATT_TD":false,"ATT_D":["1\/4"],"ATT_TYPESOED2":"","ATT_SIZES2":"","ATT_TYPESOED3":"","ATT_SIZESOED2":"","ATT_CON":"","ATT_FLOWP":"","ATT_VALVES":"","ATT_CONFDES":"","SER_KR":"","ATT_DM":"\u0414\u044e\u0439\u043c","ATT_EXIT":"05","TABLE_EXIT":"0.23(5.8)","TABLE_L1":"0.43(10.9)","TABLE_L2":"1.60(40.6)","TABLE_H1":"1.60(40.6)","TABLE_H2":"2.70(68.6)","TABLE_H":"4.30(109.2)","TABLE_F":"4.09(104)","ART":null,"TEMPERATURE":"","TABLE_DAVL":"","RAZM_TRUBKA":"","ATT_BASENUM":"RV4","ATT_SOED_SIZE":"F4","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/db8\/158_158_0\/db8bef6aab8cb0e7098d654525010cf9.png"}]
