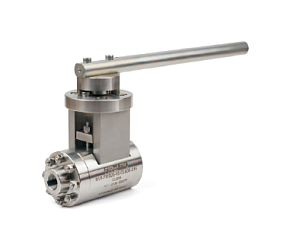

Шаровые краны серии BV8

Hабочее давление от 600 до 4500 бар по классу ASME
Рабочая температура от -28°C до 815°C (-20°F до 1500°F)
Цельный кованный корпус
Уплотнение из графойла и нержавеющей стали с динамической нагрузкой
Высокоскоростное сверхзвуковое газопламенное напыление
Матовый шар и сёдла
Направляющий подшипник для плавного открытия на четверть оборота
Разнообразие концевых соединений
Рычажный, зубчатый, пневматический или электрический приводы

от 600 до 4500 бар

от -28 до 815

Техническая информация Подбор товара Скачать каталог Скачать чертежи

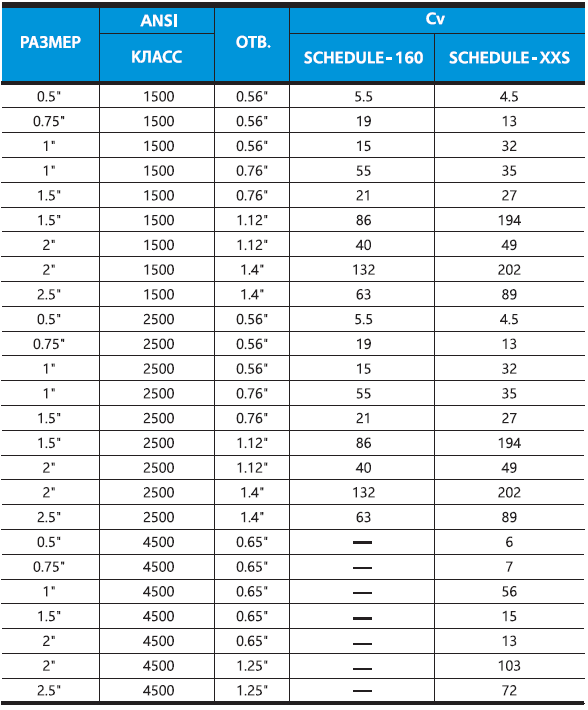

Технические данные

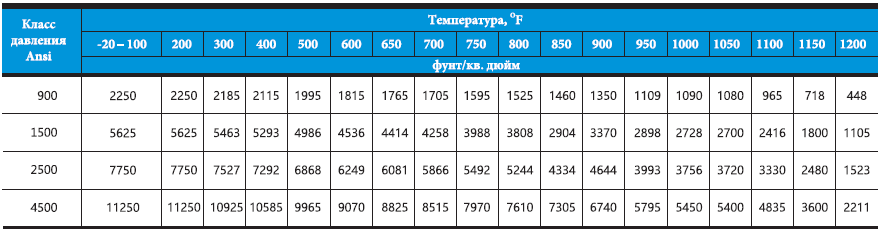

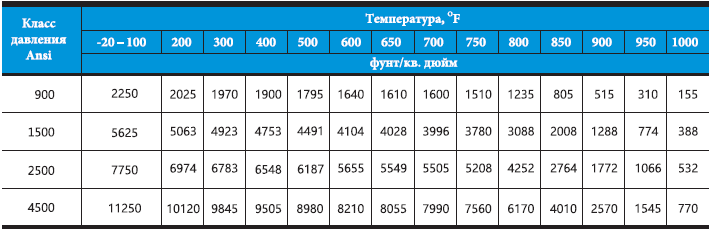

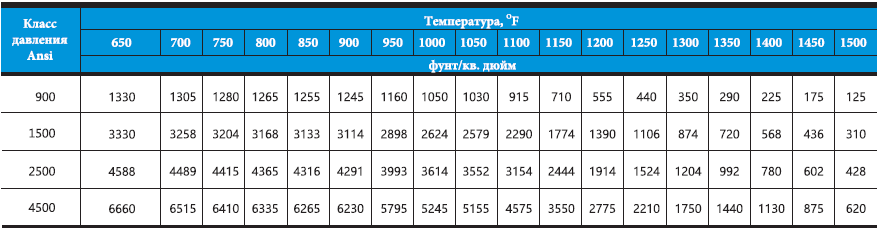

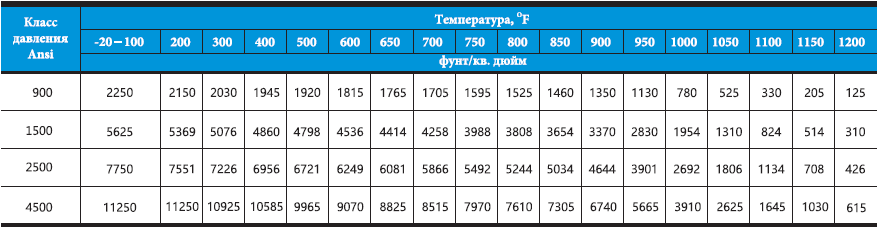

Номинальные параметры давления и температуры

A182-F22 (2 1/4 Cr.- 1 Mo.)

A105 (Углеродистая сталь)

A182-F316 (Нержавеющая сталь 316)

A182-F91 (9Cr.- 1 Mo.)

Стандартные используемые материалы

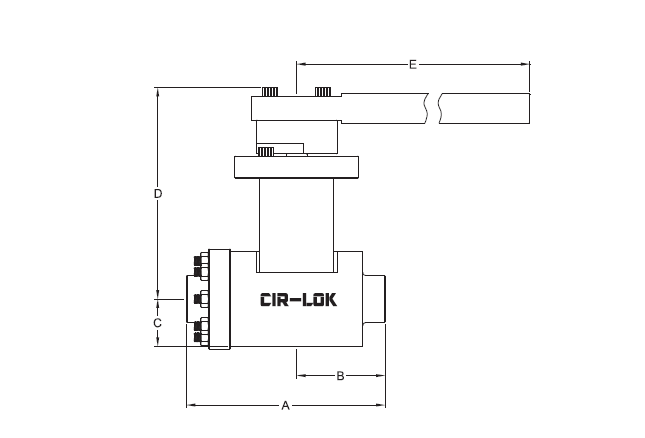

Размеры

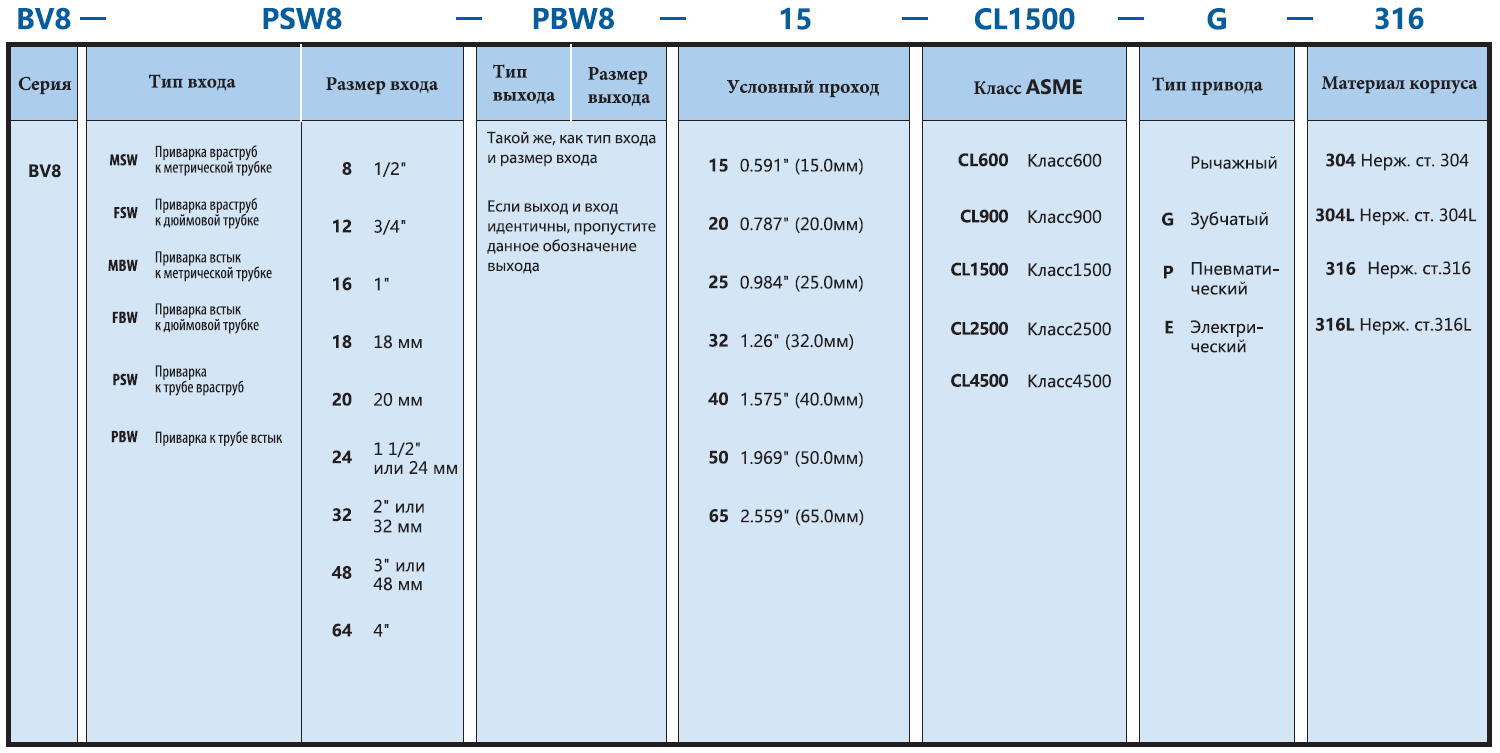

Как заказать

Показать параметры
