Сильфонные вентили серии BS3
- Рабочее давление до 34,4 бара (500 фунт/кв. дюйм)
- Рабочая температура от -40°С до 93°С (-40°F до 200°F)
- Низкотемпературное исполнение (от -60°)
- Коэффициенты расхода (Cv): 0,3 и 0,7
- Разнообразие торцевых соединений
- Корпус из нержавеющей стали 316
- Возможно крепление на панель сбоку и снизу
- Возможны различные варианты рукоятки
- Высокоточные металлические сильфоны обеспечивают высокую герметичность
- Невращающийся наконечник штока
- Крышка прилегает к корпусу без прокладки.
- Конструкция соединения привода и штока обеспечивает плавное срабатывание
- Каждый клапан испытывается гелием в течение 10 с до максимальной скорости утечки 4×10-9 норм. см3

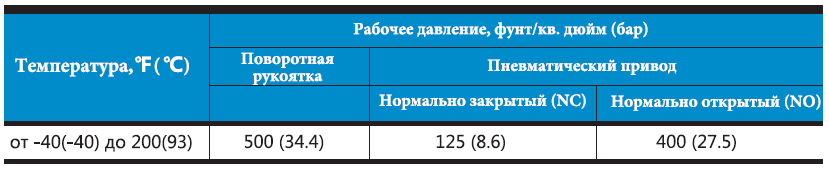

Номинальные параметры давления и температуры

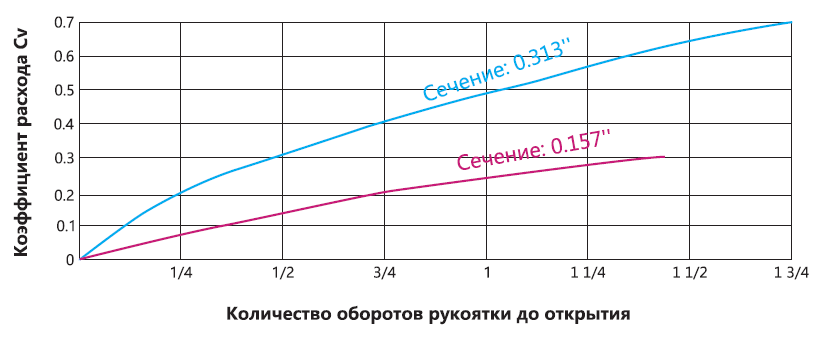

Коэффициент расхода в зависимости от оборотов рукоятки до открытия

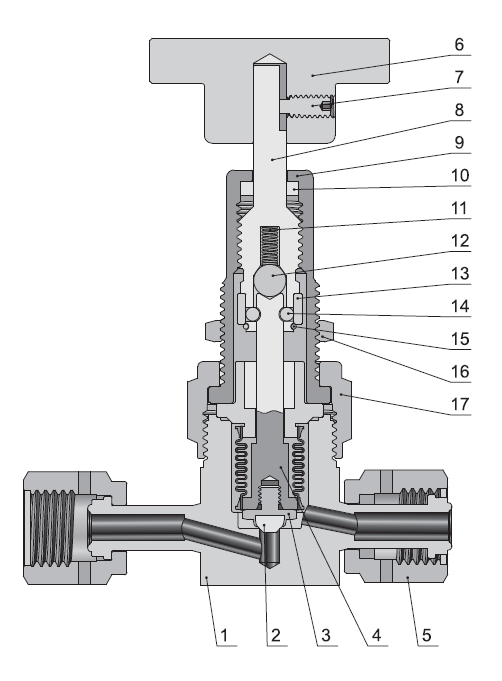

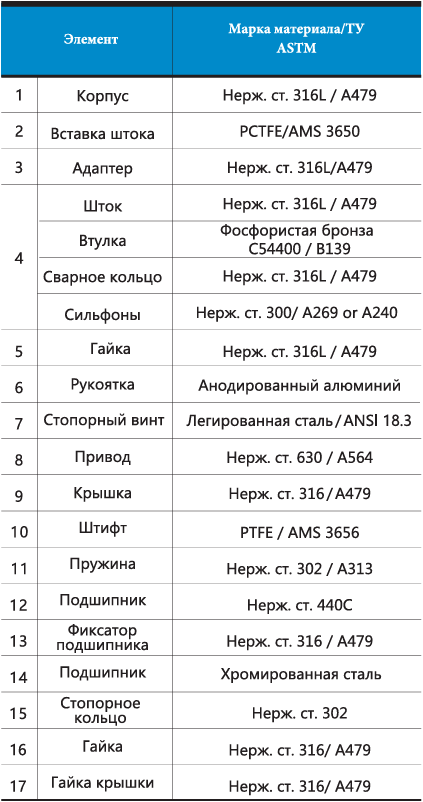

Стандартные используемые материалы

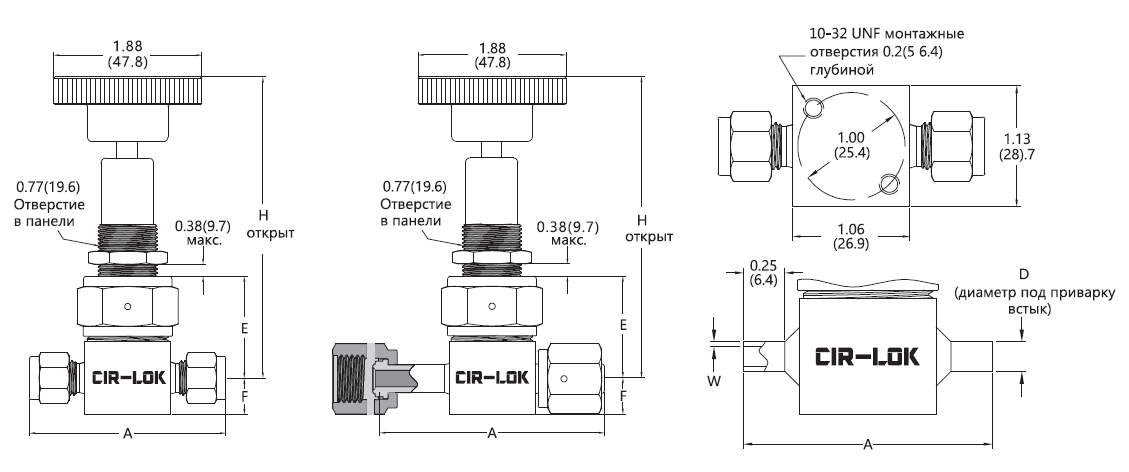

Размеры

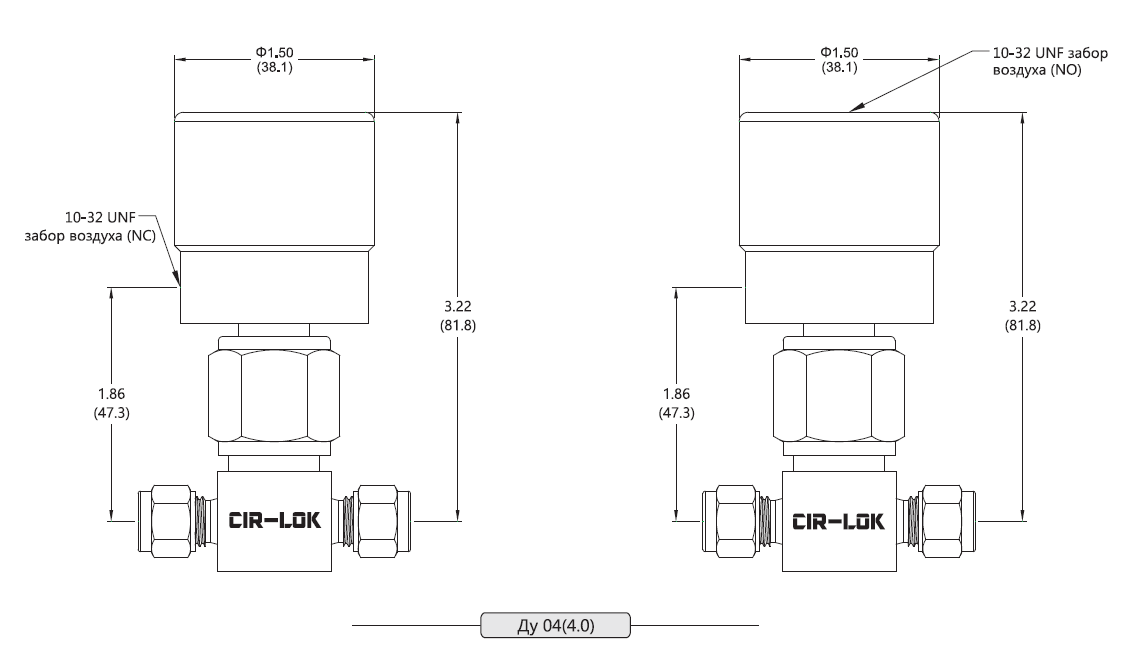

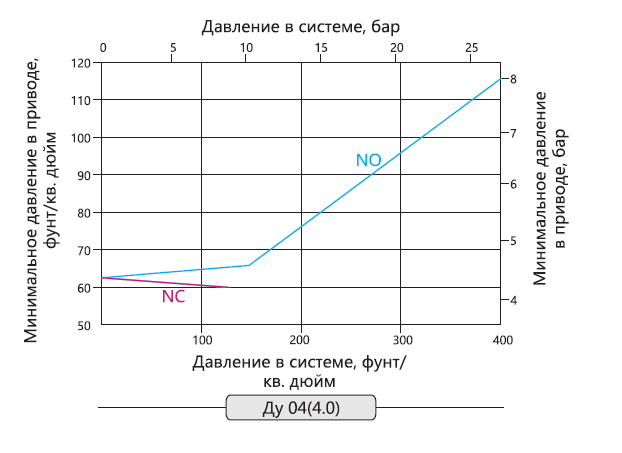

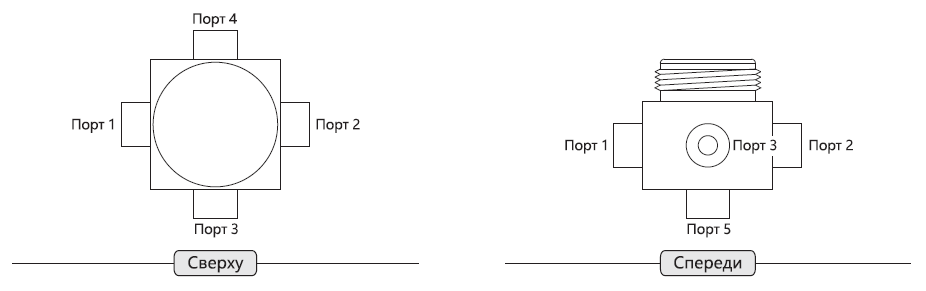

Пневматические приводы

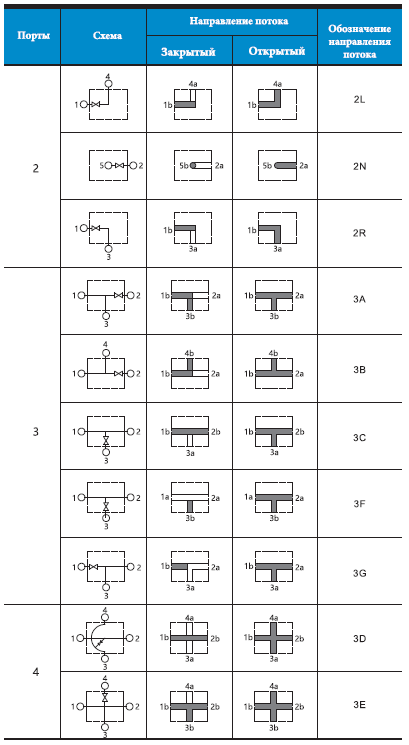

Направление потока

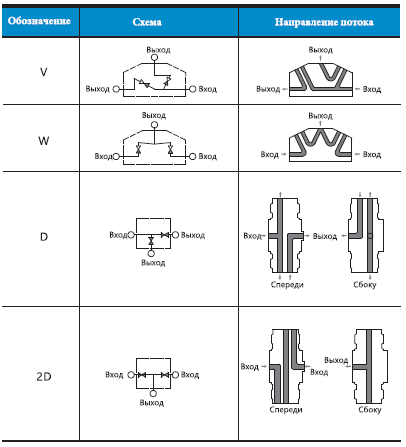

Многоклапанные манифольды

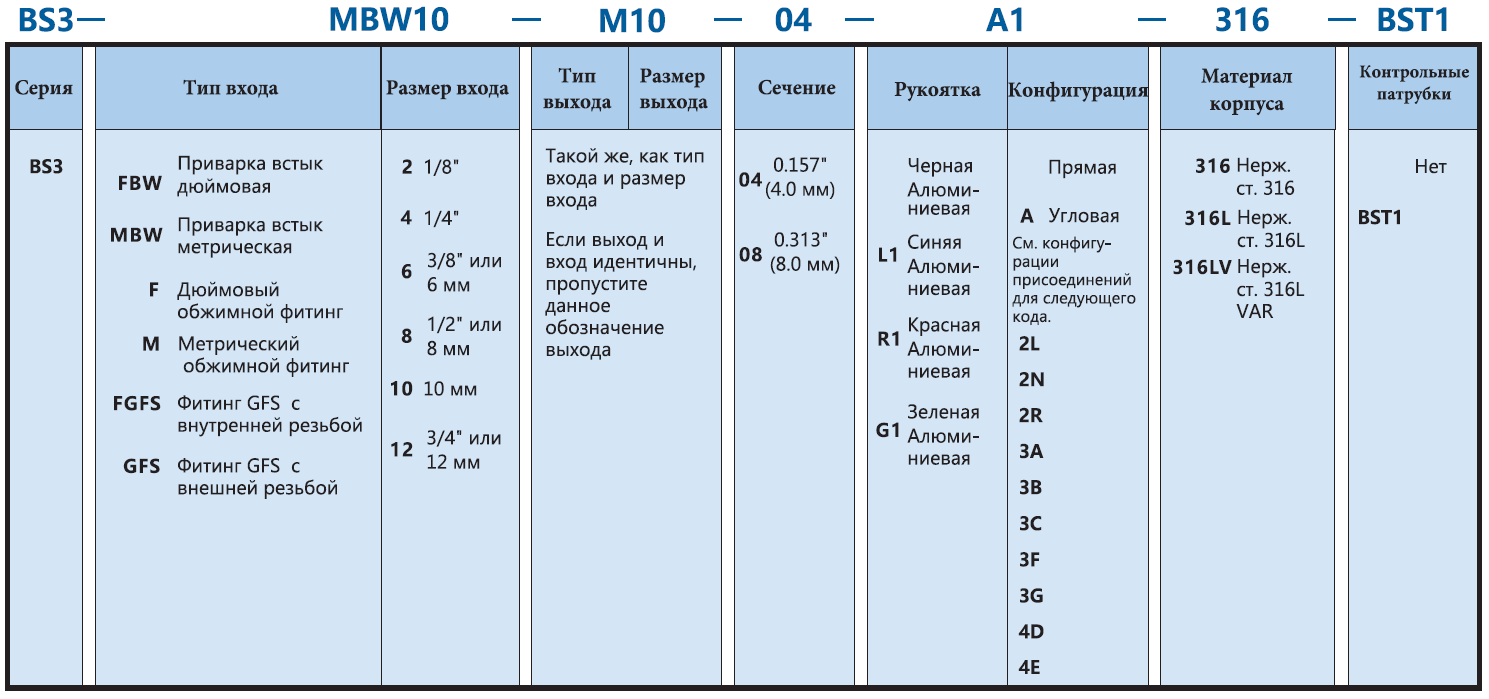

Как заказать
