Предохранительные клапаны высокого давления серии 60RV (4137 бар)
- Мягкое седло предохранительного клапана
- Давление срабатывания: от 207 до 4137 бар (3000 до 60.000 фунт/кв. дюйм)
- Рабочая температура: от -79°С до 260°С (-110°F до 500°F)
- Жидкостные или газовые среды. Обеспечивает герметичное перекрытие газа
- Настройки давления срабатывания производятся на заводе-изготовителе, и клапаны помечаются соответствующим образом.
- Укажите требуемое давление срабатывания при заказе.
- Зафиксированный проволочный замок для поддержания заданного давления срабатывания.
- Легко заменяемое седло.
- Легкий монтаж

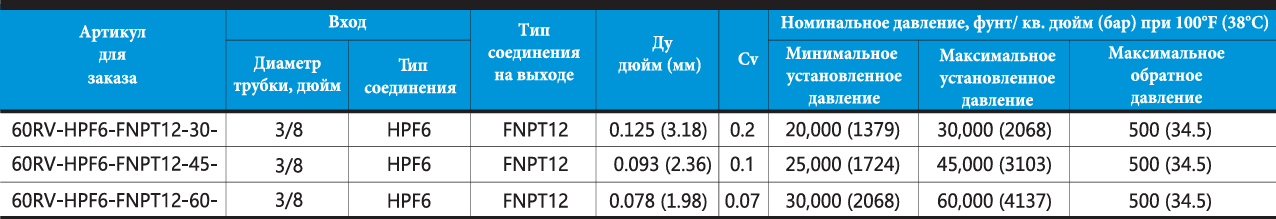

Технические данные

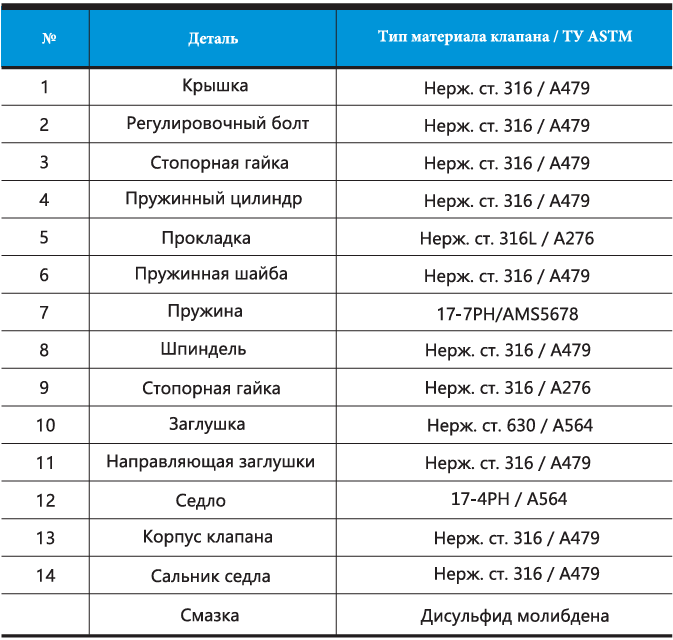

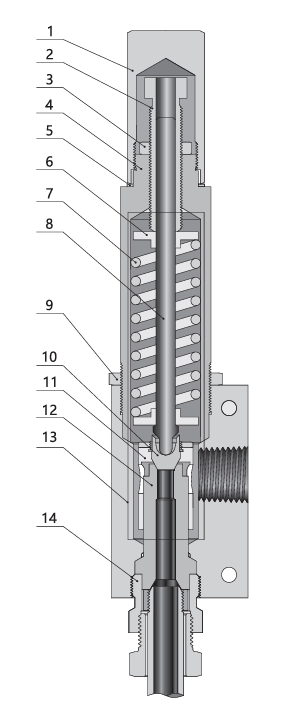

Стандартные материалы

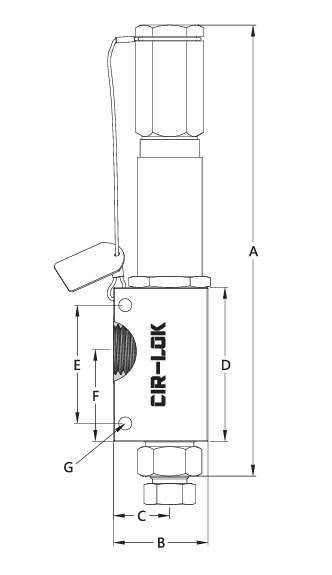

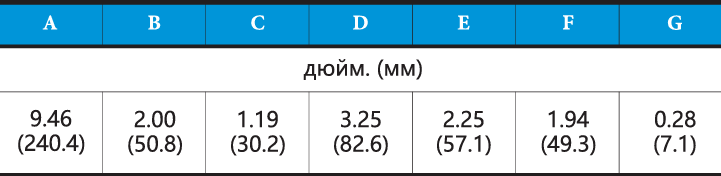

Размеры

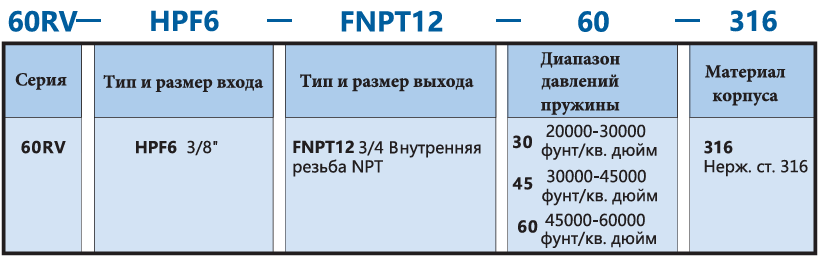

Как заказать
Сортировать:
[{"ID":5182,"NAME":"60RV-HPF6-FNPT12-60-","DETAIL_PAGE_URL":"\/predokhranitelnyye-klapany-vysokogo-davleniya-serii-60rv-4137-bar\/60rv-hpf6-fnpt12-60\/","ATT_TYPE_FITTING":"","ATT_SOED":"HPF","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/8"],"ATT_TYPESOED2":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_SIZES2":"3\/4","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"","TABLE_EXIT":"0.078 (1.98)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"HPF6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/ef6\/158_158_0\/ef625ab5e4a83de79ab667a81acd2436.png"},{"ID":5181,"NAME":"60RV-HPF6-FNPT12-45-","DETAIL_PAGE_URL":"\/predokhranitelnyye-klapany-vysokogo-davleniya-serii-60rv-4137-bar\/60rv-hpf6-fnpt12-45\/","ATT_TYPE_FITTING":"","ATT_SOED":"HPF","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/8"],"ATT_TYPESOED2":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_SIZES2":"3\/4","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"","TABLE_EXIT":"0.093 (2.36)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"HPF6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/ef6\/158_158_0\/ef625ab5e4a83de79ab667a81acd2436.png"},{"ID":5180,"NAME":"60RV-HPF6-FNPT12-30-","DETAIL_PAGE_URL":"\/predokhranitelnyye-klapany-vysokogo-davleniya-serii-60rv-4137-bar\/60rv-hpf6-fnpt12-30\/","ATT_TYPE_FITTING":"","ATT_SOED":"HPF","ATT_MAT":"","ATT_TD":false,"ATT_D":["3\/8"],"ATT_TYPESOED2":"\u0412\u043d\u0443\u0442\u0440\u0435\u043d\u043d\u044f\u044f \u0440\u0435\u0437\u044c\u0431\u0430 NPT","ATT_SIZES2":"3\/4","ATT_TYPESOED3":null,"ATT_SIZESOED2":"","ATT_CON":null,"ATT_FLOWP":null,"ATT_VALVES":null,"ATT_CONFDES":null,"SER_KR":"","ATT_DM":null,"ATT_EXIT":"","TABLE_EXIT":"0.125 (3.18)","TABLE_L1":null,"TABLE_L2":null,"TABLE_H1":null,"TABLE_H2":null,"TABLE_H":"","TABLE_F":null,"ART":null,"TEMPERATURE":null,"TABLE_DAVL":null,"RAZM_TRUBKA":null,"ATT_BASENUM":null,"ATT_SOED_SIZE":"HPF6","PREVIEW_PICTURE":null,"PICTURE":"\/upload\/resize_cache\/iblock\/ef6\/158_158_0\/ef625ab5e4a83de79ab667a81acd2436.png"}]
